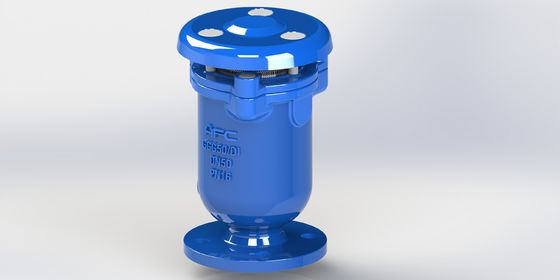

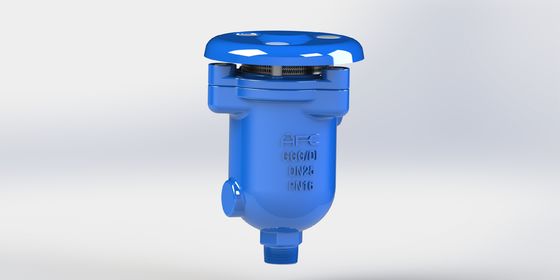

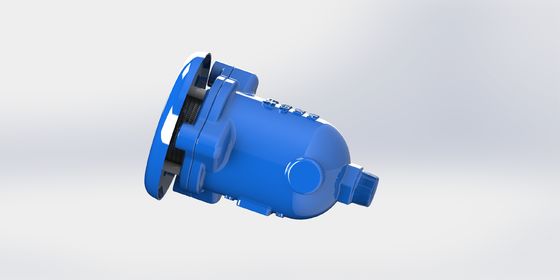

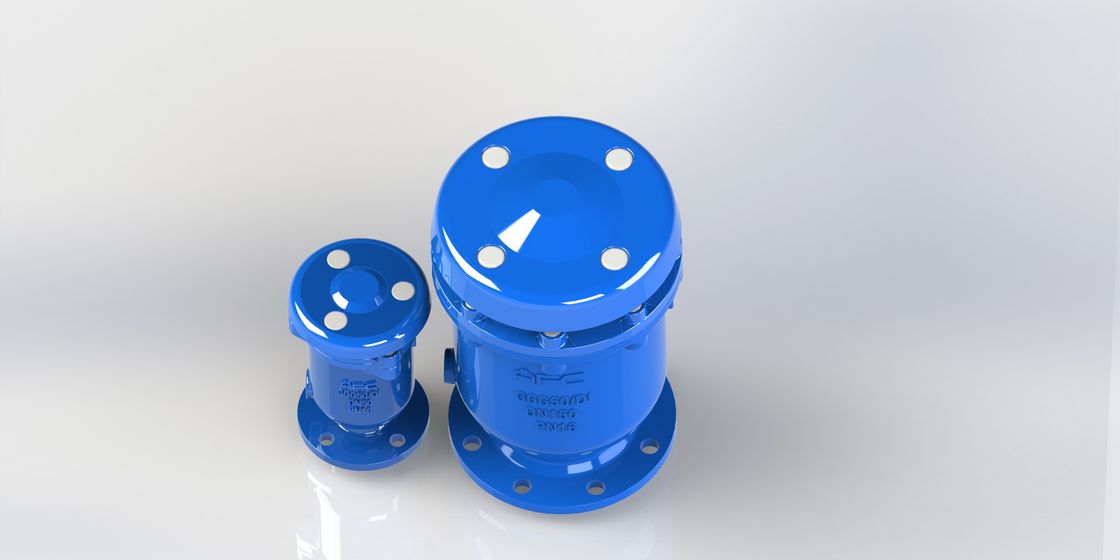

Stainless Steel Float Combination Air Release Valve with PN10-16-25 Pressure Rating for 50-300mm Pipeline Networks

Product Description:

The Combination Air Release Valve is an essential component designed to optimize the performance and safety of fluid systems by efficiently managing air and vacuum conditions within pipelines. Available in sizes ranging from 50mm to 300mm, this valve is engineered to accommodate a wide variety of industrial and municipal applications, ensuring reliable operation under diverse working conditions.

One of the standout features of the Combination Air Release Valve is its versatile functionality. It combines the capabilities of both air release and vacuum breaker valves in a single unit. This dual-functionality allows the valve to automatically release trapped air during the filling of pipelines and admit air when a vacuum condition occurs, thereby preventing pipeline collapse or damage. This makes it an indispensable device in maintaining the integrity and efficiency of water supply networks, irrigation systems, and other fluid transportation systems.

Manufactured to comply with the stringent EN1074-4 standard, the Combination Air Release Valve guarantees high performance, durability, and safety. EN1074-4 certification ensures that the valve meets European quality and reliability benchmarks, providing users with confidence in its long-term operational stability. This certification highlights the valve’s ability to withstand various pressures and environmental stresses, making it suitable for both domestic and industrial applications.

The valve is designed with a resilient seated seal type, which enhances its sealing capability and ensures leak-proof operation. The resilient seat provides excellent resistance to wear and tear, maintaining a tight seal even after prolonged use. This feature is particularly important in preventing water loss and maintaining pressure within the system, contributing to overall system efficiency and cost savings.

Operating within a temperature range of 0°C to 80°C, the Combination Air Release Valve is suitable for a broad spectrum of fluid types and temperatures. This temperature tolerance ensures that the valve performs consistently in various climatic conditions and industrial settings, whether it is handling cold water in municipal systems or warmer fluids in industrial processes.

The pressure rating options of PN10, PN16, and PN25 offer flexibility to meet different system requirements. With these pressure ratings, the valve can be seamlessly integrated into pipelines operating under varying pressure conditions, ensuring optimal air release and vacuum breaking performance without compromising safety or reliability.

A key innovation incorporated in this valve is the Aero Kinetic design, which enhances the valve’s efficiency in managing air flow. The Aero Kinetic technology optimizes the valve’s internal aerodynamics, allowing for rapid air release and vacuum breaking while minimizing water loss and pressure fluctuations. This results in smoother pipeline operations, reduced maintenance needs, and extended service life of the system components.

In summary, the Combination Air Release Valve is a highly reliable, efficient, and durable solution for managing air and vacuum in fluid transport systems. Its compliance with EN1074-4 standards, resilient seated seal, wide size range (50-300mm), and flexible pressure ratings (PN10-16-25) make it suitable for a variety of applications. The integration of Aero Kinetic technology further enhances its performance, making it an excellent choice for ensuring the safety, efficiency, and longevity of pipeline systems. Whether used in municipal water supply, irrigation, or industrial fluid transport, this valve provides superior air release and vacuum breaking capabilities that protect infrastructure and optimize system functionality.

Technical Parameters:

Applications:

The AFC / OEM Combination Air Release Valve, model number KARX, is a highly reliable and efficient solution designed for various industrial and municipal applications. Manufactured in China with a robust ductile iron valve body, this valve is engineered to meet the rigorous EN1074-4 certification standards, ensuring superior performance and safety. Its resilient seated seal type guarantees tight sealing, minimizing leakage and maintaining system integrity under different operating conditions.

This valve is ideal for applications requiring effective air management in pipelines, such as water supply systems, irrigation networks, and wastewater treatment plants. The combination air release valve excels in scenarios where both automatic air release and vacuum breaking are needed to protect pipelines from damage due to air accumulation or negative pressure. It functions as an Aero Kinetic device that efficiently expels trapped air pockets and prevents vacuum conditions by acting as a vacuum breaker, thereby enhancing the longevity and reliability of fluid transport systems.

With a pressure rating range of PN10-16-25 and a temperature tolerance from 0°C to 80°C, the KARX model is suitable for a wide variety of environments and fluid types. Its size range of 50-300mm allows it to be adaptable to different pipeline diameters, making it versatile for small to large-scale projects. The valve’s minimum order quantity of one unit facilitates easy procurement for both small-scale operations and large infrastructure deployments.

Common application occasions include municipal water distribution networks where air pockets can cause flow interruptions and pressure surges, industrial plants where maintaining vacuum conditions can prevent pipe collapse, and irrigation systems that require consistent pressure and flow control. The AFC / OEM Combination Air Release Valve ensures that these systems operate smoothly by automatically releasing trapped air and breaking vacuum conditions, thus preventing water hammer and pipeline damage.

In summary, the AFC / OEM KARX Combination Air Release Valve is a critical component in maintaining pipeline health and efficiency. Its compliance with EN1074-4 standards, Aero Kinetic air release mechanism, and vacuum breaker functionality make it an indispensable tool for engineers and operators seeking reliable air management solutions in various fluid transport applications.

Support and Services:

For technical support and services related to the Combination Air Release Valve, please refer to the product manual and installation guidelines provided with the valve. Our technical team is available to assist with troubleshooting, maintenance advice, and performance optimization to ensure your valve operates efficiently and reliably.

We recommend regular inspection and cleaning of the valve to prevent blockages and ensure proper air release. Replacement parts and accessories are available to maintain the functionality of your valve over time.

For detailed service procedures, installation tips, and operational guidance, please consult the documentation included with your product or visit our online resources. Our support services aim to maximize the lifespan and performance of your Combination Air Release Valve in various applications.
