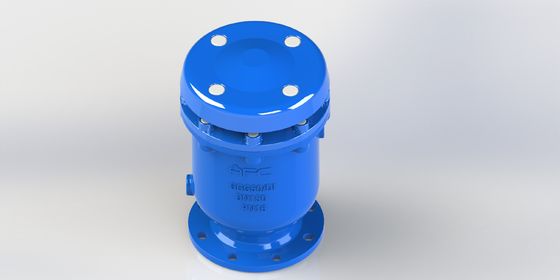

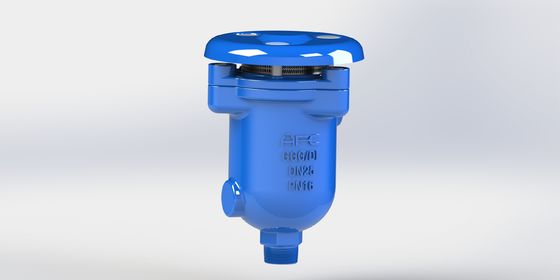

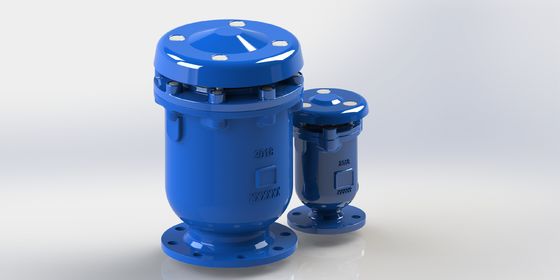

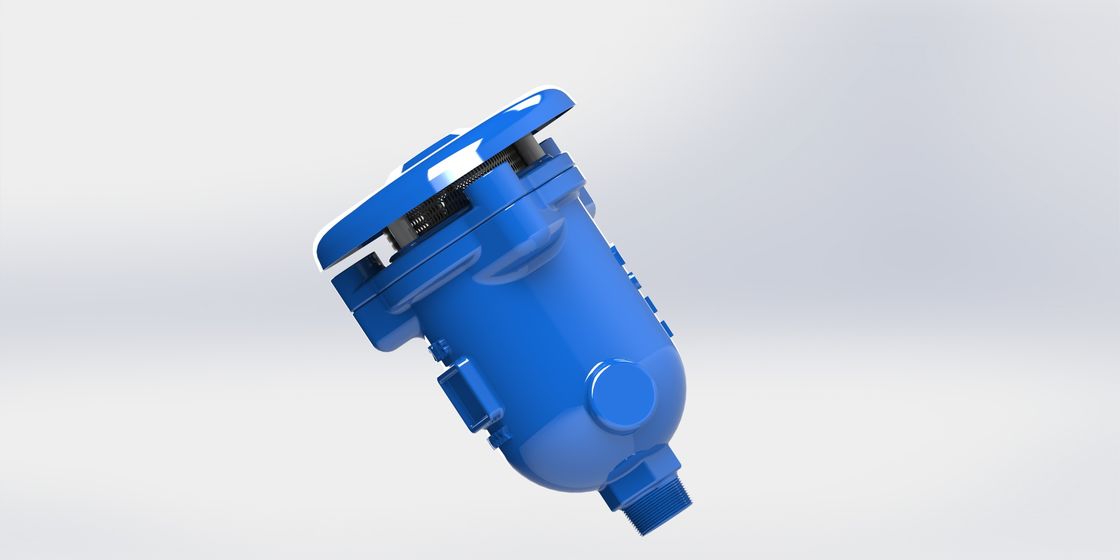

Combination Air Release Valve with Stainless Steel Float and Threaded Flange Connection for PN10-16-25 Pressure Systems

Product Description:

The Combination Air Release Valve is an essential component designed to improve the efficiency and safety of fluid systems, particularly in potable water applications. Available in sizes ranging from 50mm to 300mm, this valve is engineered to handle various operational demands and ensure optimal performance in pipelines and water distribution networks. Its robust construction and reliable functionality make it an indispensable choice for engineers and system designers who prioritize durability and precision.
One of the standout features of this Combination Air Release Valve is its pressure rating versatility. It is available in PN10, PN16, and PN25 pressure classes, catering to a wide spectrum of system requirements. This range allows the valve to be used in both low and high-pressure environments, providing flexibility and adaptability across different installation scenarios. Whether the pipeline operates under moderate or higher pressure, the valve maintains consistent air release and vacuum-breaking capabilities, thus protecting the system from potential damage caused by air accumulation.
The valve type itself, a Combination Air Release Valve, is specifically designed to perform dual functions: automatic air release during normal system operation and large air expulsion or admission during system filling or draining. This dual functionality is critical in potable water systems where the presence of air pockets can cause flow disruptions, pressure fluctuations, and even water hammer, which may lead to pipeline damage. By effectively releasing trapped air and admitting air when negative pressure occurs, the valve ensures smooth and uninterrupted water flow, enhancing the overall system reliability.
Constructed with a stainless steel float, the Combination Air Release Valve offers excellent corrosion resistance and longevity, which are crucial in potable water systems where hygiene and durability are paramount. The stainless steel float ensures that the valve operates efficiently without degradation over time, even when exposed to varying water qualities and environmental conditions. This material choice aligns with the highest standards in water treatment and distribution, ensuring that the valve contributes to maintaining water quality while minimizing maintenance needs.
In addition to its physical and mechanical attributes, the valve incorporates Aero Kinetic technology, which optimizes the air release process through aerodynamic principles. This innovative approach enhances the valve’s responsiveness and efficiency in detecting and expelling air from the system. Aero Kinetic technology reduces the risk of air-related issues such as turbulence and cavitation, thus prolonging the lifespan of pumps, pipes, and other components within the water distribution network. This technology also aids in maintaining steady flow rates, which is essential for potable water systems to deliver safe and consistent water supply to consumers.
The Combination Air Release Valve is designed with ease of installation and maintenance in mind. Its versatile size range from 50mm to 300mm allows integration into various pipeline diameters without compromising performance. The valve’s design facilitates quick inspection and servicing, which reduces downtime and operational costs in critical potable water systems. This user-friendly aspect makes it a preferred choice for municipal water authorities, industrial facilities, and commercial water systems.
Overall, the Combination Air Release Valve is a high-quality, reliable solution for managing air within potable water systems. Its robust construction, stainless steel float, and advanced Aero Kinetic technology ensure that it performs efficiently under different pressure ratings from PN10 to PN25. By preventing air-related issues, this valve helps maintain system integrity, improve water quality, and extend the lifespan of water infrastructure. For anyone seeking a dependable and effective air management valve, the Combination Air Release Valve stands out as a superior choice that meets the demanding needs of modern potable water systems.

Technical Parameters:

Applications:

The Combination Air Release Valve, model KARX, manufactured by AFC / OEM in China, is an essential component designed to efficiently manage air exhausting in potable water systems. Certified to EN1074-4 standards, this valve ensures reliable performance and safety in various water supply applications. Its robust construction and advanced design make it ideal for preventing air accumulation, which can cause flow disruptions and pressure issues in pipelines.
This valve is suitable for a wide range of application occasions and scenarios. In potable water distribution networks, the KARX valve facilitates automatic air exhausting, ensuring smooth water flow and preventing water hammer effects. Its capability to release trapped air pockets helps maintain system efficiency and prolongs the lifespan of pipelines and associated equipment. The valve’s resilient seated seal type provides excellent sealing performance, reducing the risk of leaks and contamination in drinking water systems.
In addition to potable water systems, the combination air release valve is widely used in irrigation systems, water treatment plants, and industrial water circuits where precise air exhausting is critical. The temperature range of 0°C to 80°C allows it to operate effectively in various climatic conditions and temperature-sensitive environments. The stainless steel float inside the valve enhances durability and corrosion resistance, making it suitable for long-term use in harsh conditions.
The KARX model offers versatile connection options, including threaded and flange end connections, which simplify installation and integration into existing pipeline systems. This flexibility makes it a preferred choice for engineers and contractors working on both new projects and retrofits. The valve’s minimum order quantity of one unit caters to both large-scale industrial needs and smaller, specialized applications.
Overall, the AFC / OEM Combination Air Release Valve KARX is a reliable solution for managing air exhausting in potable water systems and other fluid networks. Its high-quality materials, certification compliance, and adaptable design ensure optimal performance in maintaining system integrity and operational efficiency across various scenarios.

Support and Services:

Product Technical Support and Services for the Combination Air Release Valve include comprehensive assistance to ensure optimal performance and longevity of the valve. Our support team provides detailed installation guidance, troubleshooting advice, and maintenance instructions tailored to the specific requirements of your system.
We offer expert consultation to help select the right valve model based on your application needs, system pressure, and flow conditions. Our technical support extends to on-site evaluations and training for your maintenance personnel to enhance operational efficiency.
Regular maintenance services are recommended to prevent air accumulation and ensure the valve operates correctly. This includes inspection, cleaning, and replacement of worn components. We also provide detailed documentation, including installation manuals, operation guidelines, and spare parts catalogs to facilitate easy servicing.
In case of any technical issues, our support team is ready to assist with prompt diagnostics and effective solutions to minimize downtime. We are committed to delivering reliable and responsive service to support your Combination Air Release Valve throughout its service life.
