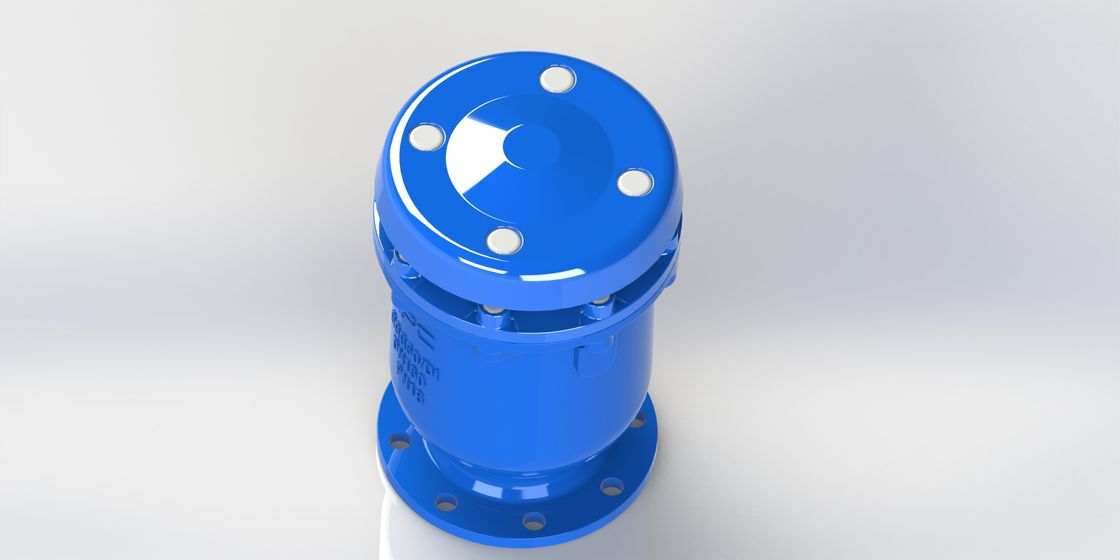

Combination Air Release Valve with Resilient Seated Seal Ductile Iron Construction and PN10-16-25 Pressure Rating

Product Description:

The Combination Air Release Valve is an essential component designed for efficient air management in potable water systems. Engineered to ensure optimal performance, this valve integrates multiple functionalities into a single, reliable unit, making it an indispensable choice for water distribution networks. Its robust construction and versatile connection types make it suitable for a wide range of applications where the release and admission of air are critical to system efficiency and longevity.

One of the standout features of this Combination Air Release Valve is its triple functions capability. This means it can perform three crucial tasks: releasing accumulated air pockets during system operation, admitting air during system drain or depressurization, and providing a safe vent to prevent vacuum conditions that might otherwise cause pipeline collapse or damage. The integration of these functions into one valve simplifies the system design, reduces maintenance requirements, and enhances overall operational reliability.

Constructed from high-quality ductile iron, the valve offers excellent strength, durability, and resistance to corrosion, making it particularly well-suited for potable water applications. The material choice ensures that the valve can withstand the rigors of daily operation in various environmental conditions without compromising water quality. Ductile iron's toughness also provides added protection against mechanical stresses, extending the service life of the valve and reducing the need for frequent replacements.

The valve features a resilient seated seal type, which guarantees a tight and reliable seal throughout its service life. This resilient seating helps prevent leaks, enhances sealing performance under varying pressure conditions, and contributes to the overall efficiency of the water system. The resilient seat also accommodates minor imperfections and wear, ensuring consistent valve operation and minimizing downtime.

In terms of connection type, the Combination Air Release Valve offers both threaded and flange options, providing flexibility to suit different installation requirements. Threaded connections are ideal for smaller pipelines and systems where quick installation or replacement is necessary. Flanged connections, on the other hand, are preferred for larger pipelines and applications where robust, secure joints are critical. This dual connection capability allows the valve to be easily integrated into existing systems or new installations with minimal hassle.

The valve is available with a pressure rating range of PN10, PN16, and PN25, covering a broad spectrum of operational pressures commonly found in potable water systems. This range ensures that the valve can perform reliably under various pressure conditions, from low-pressure distribution networks to higher-pressure transmission lines. The ability to handle different pressure ratings enhances the valve’s versatility and makes it a preferred choice for engineers and system designers aiming for optimal air management solutions.

Designed specifically for potable water, the Combination Air Release Valve complies with strict quality and safety standards to ensure that water purity is maintained. Its design prevents the ingress of contaminants while effectively managing air within the system, thus protecting both the infrastructure and the water quality. The valve’s efficient air release and intake mechanisms help reduce water hammer effects, prevent pipeline corrosion caused by oxygen, and improve overall hydraulic performance.

In summary, the Combination Air Release Valve is a high-performance, durable, and versatile valve that addresses the critical need for air management in potable water systems. Its triple functions ensure comprehensive air control, while the resilient seated seal and ductile iron construction guarantee long-lasting reliability and safety. With threaded and flange connection options and a wide pressure rating range, this valve is adaptable to numerous installation scenarios, making it an excellent choice for engineers and water system operators striving for efficient and safe water distribution.

Features:

• Product Name: Combination Air Release Valve
• Pressure Rating: PN10-16-25
• Material: Ductile Iron
• Seal Type: Resilient Seated
• Valve Body: Ductile Iron
• Designed in accordance with EN1074-4 standards
• Ensures efficient air release and vacuum breaking in pipelines
• Durable construction suitable for various water supply systems
• Combination Air Release Valve provides reliable performance under varying pressure conditions

Technical Parameters:

Applications:

The AFC / OEM Combination Air Release Valve, model number KARX, is a highly reliable and efficient solution designed for a wide range of applications involving potable water systems. Manufactured in China with strict adherence to the EN1074-4 certification standards, this valve ensures optimal performance and safety in water supply networks. Its robust construction from ductile iron provides excellent durability and resistance to corrosion, making it suitable for various demanding environments.

One of the primary application occasions for the Combination Air Release Valve is in potable water distribution systems. The valve's ability to automatically release trapped air helps maintain system efficiency and prevents issues such as water hammer, pipeline corrosion, and flow disruptions. With sizes ranging from 50 to 300mm, it can be easily integrated into both small-scale and large-scale water supply infrastructures.

The valve features a stainless steel float that guarantees long-lasting performance and reliable air release operation. This is particularly crucial in potable water applications where maintaining water quality and system integrity is paramount. The combination air release valve type allows for both continuous air release during normal operation and rapid air expulsion during pipeline filling or draining, making it versatile for various pipeline scenarios.

In addition to potable water systems, the KARX Combination Air Release Valve is suitable for use in irrigation networks, wastewater treatment plants, and industrial water supply systems where air accumulation might impair system functionality. Its EN1074-4 certification assures compliance with international standards, providing users with confidence in its safety and efficacy.

With a minimum order quantity of just one unit, this product is accessible for both large infrastructure projects and smaller maintenance needs. The AFC / OEM brand emphasizes quality and customer satisfaction, making the Combination Air Release Valve a trusted choice for engineers and system designers seeking reliable air management solutions in potable water pipelines and related applications.

Customization:

Our Combination Air Release Valve, model number KARX, is designed and manufactured under the trusted AFC brand, with OEM options available. Originating from China, this valve meets the stringent EN1074-4 certification standards, ensuring high quality and reliable performance.

The valve body is made of durable ductile iron, providing excellent strength and corrosion resistance. It features a stainless steel float for enhanced durability and precise operation. Available in sizes ranging from 50mm to 300mm, this combination air release valve is suitable for a wide array of applications.

As a combination air release valve, it effectively removes trapped air and releases large volumes of air from pipeline systems, utilizing an Aero Kinetic design to optimize air discharge and prevent water hammer. Our product complies fully with EN1074-4 certification requirements, guaranteeing safety and efficiency.

We accept a minimum order quantity of just one unit, making it easy for you to customize and integrate our Combination Air Release Valve into your projects with confidence.

Support and Services:

Product Technical Support and Services for the Combination Air Release Valve include comprehensive assistance to ensure optimal performance and longevity of the product. Our technical support team is available to provide guidance on installation, operation, and maintenance procedures.

We offer detailed product documentation, including user manuals, installation guides, and troubleshooting tips to help you quickly resolve any issues. Additionally, our experts can assist with system design considerations to ensure the valve is correctly integrated into your pipeline system.

Regular maintenance services are recommended to prevent operational failures, including inspection of valve components, cleaning, and replacement of worn parts. We also provide training sessions and workshops to educate your staff on best practices for handling and maintaining the Combination Air Release Valve.

For any technical inquiries or support requests, please refer to the product documentation or contact our support team through the designated channels. We are committed to delivering prompt and effective solutions to maximize the efficiency and reliability of your air release valve system.

Packing and Shipping:

Each Combination Air Release Valve is carefully packaged in a sturdy cardboard box to ensure protection during transit. The product is wrapped with protective cushioning material to prevent any damage from shocks or vibrations.

The packaged valve is then placed in a larger shipping carton, with additional padding if necessary, to secure it firmly and avoid movement inside the box.

All cartons are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics and delivery.

For bulk orders, individual packages are consolidated on pallets, securely wrapped and strapped to maintain stability throughout the shipping process.

We ensure that all packaging complies with international shipping standards to guarantee the Combination Air Release Valve arrives safely and in perfect condition.

FAQ:

Q1: What is the brand and model number of the Combination Air Release Valve?

A1: The Combination Air Release Valve is available under the brand name AFC / OEM and the model number is KARX.

Q2: Where is the Combination Air Release Valve manufactured?

A2: This product is manufactured in China.

Q3: Does the Combination Air Release Valve have any certifications?

A3: Yes, the valve is certified according to the EN1074-4 standard.

Q4: What is the minimum order quantity for the Combination Air Release Valve?

A4: The minimum order quantity for this product is 1 unit.

Q5: Can the Combination Air Release Valve be customized or provided as OEM?

A5: Yes, the product can be supplied as OEM according to customer requirements.
