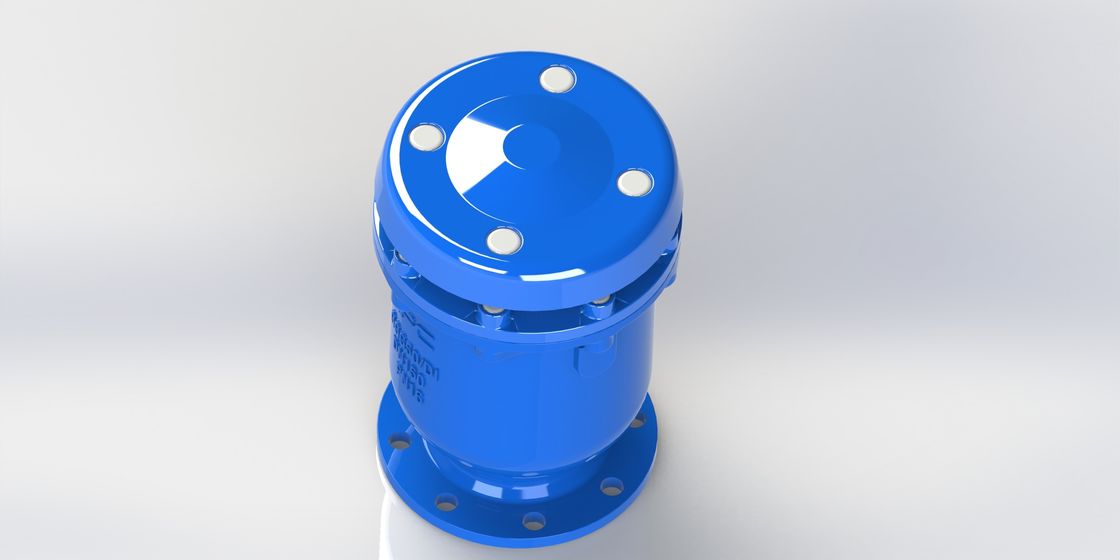

PN10-16-25 Pressure Rating Combination Air Release Valve with Resilient Seated Seal and Stainless Steel Float

Product Description:

The Combination Air Release Valve is an essential component designed to efficiently manage the release and intake of air within various piping systems. Available in sizes ranging from 50mm to 300mm, this valve is engineered to accommodate a wide array of industrial and municipal applications, ensuring optimal performance and longevity. Its robust construction and versatile connection options make it a reliable choice for maintaining system integrity and preventing common issues such as air blockages, pressure surges, and water hammer.

One of the standout features of this Combination Air Release Valve is its resilient seated seal type. The resilient seated design guarantees a tight, leak-proof seal that adapts to fluctuations in pressure and temperature, providing enhanced durability and minimizing maintenance requirements. This type of sealing ensures that the valve operates smoothly, maintaining system efficiency by preventing air leakage and reducing the risk of corrosion or damage to the pipeline.

The valve's end connection options include both threaded and flange types, offering flexibility to fit seamlessly into existing pipeline setups. The threaded connection is ideal for smaller diameter pipes and facilitates quick installation and removal, while the flange connection provides a secure and robust attachment for larger pipelines and high-pressure systems. This dual connection capability allows the Combination Air Release Valve to be integrated into a variety of infrastructure projects with ease, making it a versatile solution for different operational needs.

Incorporating Aero Kinetic principles, the Combination Air Release Valve is designed to optimize airflow dynamics within the system. Aero Kinetic technology enhances the valve’s ability to efficiently release trapped air and vacuum conditions, thereby improving the overall hydraulic performance of the pipeline. This innovative approach reduces the risk of flow interruptions and energy losses, contributing to more reliable and cost-effective system operations.

Manufactured with high-quality materials and precision engineering, the Combination Air Release Valve is built to withstand harsh environmental conditions and demanding industrial environments. Its robust construction ensures resistance to wear, corrosion, and mechanical stress, extending the service life of the valve and reducing downtime due to maintenance or replacements. This durability makes it particularly suitable for use in water treatment plants, irrigation systems, HVAC installations, and other critical infrastructure where consistent air management is vital.

The Combination Air Release Valve also features an easy-to-maintain design, allowing for straightforward inspection and servicing. This user-friendly aspect is crucial for minimizing operational disruptions and ensuring that the valve continues to perform at peak efficiency over time. By facilitating routine maintenance without the need for extensive system shutdowns, the valve supports uninterrupted service and operational continuity.

Another key advantage of the Combination Air Release Valve is its ability to combine the functions of both automatic air release and air/vacuum release into a single unit. This integration simplifies system design and reduces the number of components needed, leading to lower installation costs and streamlined maintenance procedures. The valve automatically expels accumulated air during system operation and admits air during pipeline draining or negative pressure events, preventing pipeline collapse and damage.

In summary, the Combination Air Release Valve with sizes from 50mm to 300mm, resilient seated seal type, and threaded and flange connection options provides a comprehensive solution for effective air management in pipelines. Leveraging Aero Kinetic technology, it delivers superior performance, durability, and versatility across a broad spectrum of applications. Whether used in industrial, municipal, or commercial settings, this valve stands out as a dependable and efficient choice for maintaining system integrity and enhancing operational efficiency.

Features:

• Product Name: Combination Air Release Valve
• Size Range: 50-300mm
• Temperature Range: 0°C to 80°C
• Pressure Rating: PN10, PN16, PN25
• Seal Type: Resilient Seated for reliable sealing
• Efficient Air Exhausting capabilities to remove trapped air
• Incorporates Aero Kinetic design for optimal performance
• Manufactured in compliance with EN1074-4 standards

Technical Parameters:

Applications:

The Combination Air Release Valve, model KARX, manufactured by AFC / OEM in China, is an essential component designed to efficiently release trapped air from pipelines, ensuring optimal system performance and longevity. Certified with EN1074-4, this valve guarantees high standards of quality and reliability, making it suitable for a wide range of industrial and municipal applications.

Constructed with a durable ductile iron valve body and stainless steel float, the Combination Air Release Valve is built to withstand harsh operating conditions while maintaining a temperature range from 0°C to 80°C. Its robust design and materials make it ideal for water supply systems, irrigation networks, wastewater treatment plants, and other fluid transport systems where air accumulation can cause pressure surges, flow interruptions, or damage to equipment.

The valve’s versatile connection types, including threaded and flange options, allow easy installation and compatibility with existing piping infrastructure, whether in new projects or retrofit applications. This flexibility makes the Combination Air Release Valve a preferred choice for engineers and system designers aiming for efficient air elimination in pipelines of various sizes and configurations.

In municipal water distribution systems, the KARX valve helps prevent air pockets that can lead to water hammer and pressure fluctuations, thereby protecting pumps, meters, and other critical components. Similarly, in industrial settings, it ensures smooth fluid flow by continuously venting trapped air, which enhances process efficiency and reduces maintenance costs.

Because the product adheres to the EN1074-4 certification, users can trust its performance and compliance with European standards for valve manufacturing and testing. The minimum order quantity of one unit allows for both small-scale and large-scale procurement, accommodating the needs of diverse customers.

Overall, the Combination Air Release Valve by AFC / OEM is a reliable, high-quality solution for managing air release in various pipeline systems. Its advanced design, certified quality, and adaptability make it indispensable in scenarios where maintaining uninterrupted fluid flow and protecting system components from air-related issues is critical.

Customization:

Our Combination Air Release Valve, model number KARX, is designed to meet diverse operational needs with its triple functions, ensuring efficient air release and system protection. Manufactured under the trusted AFC brand and available for OEM customization, this valve originates from China and complies with the EN1074-4 certification, guaranteeing high quality and reliability.

The valve body is crafted from durable ductile iron, providing excellent strength and longevity. Featuring a resilient seated seal type, it ensures tight sealing and minimizes leakage. The Combination Air Release Valve operates effectively within a temperature range of 0°C to 80°C and supports pressure ratings of PN10, PN16, and PN25, making it suitable for various applications.

Incorporating advanced Aero Kinetic technology, this valve optimizes air discharge performance, enhancing system efficiency. We accept a minimum order quantity of 1, allowing flexibility for both small and large scale projects. Choose our Combination Air Release Valve for a reliable, certified solution that combines superior materials and innovative design.

Support and Services:

Our Combination Air Release Valve is designed to efficiently release air pockets from pipelines, ensuring optimal system performance and preventing issues such as water hammer and flow disruption. For technical support, please refer to the product manual included with your valve, which provides detailed installation, operation, and maintenance instructions.

If you encounter any operational issues, ensure that the valve is installed correctly according to the guidelines and that the pipeline system is depressurized before performing maintenance. Regular inspection and cleaning of the valve will help maintain its functionality and extend its service life.

We offer comprehensive services including product troubleshooting, replacement parts, and guidance on installation best practices. Our technical team is equipped to assist you with system design considerations and performance optimization related to the Combination Air Release Valve.

For detailed technical documentation, including CAD drawings, specification sheets, and performance curves, please visit our website or consult the product literature provided at the time of purchase.

Ensure to follow all safety protocols and local regulations when handling and installing the Combination Air Release Valve to guarantee safe and reliable operation.

Packing and Shipping:

Product Packaging:

The Combination Air Release Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in protective material and placed in a sturdy, custom-designed cardboard box. The packaging includes cushioning inserts to prevent movement and damage. All boxes are clearly labeled with product information, handling instructions, and barcode for easy identification.

Shipping:

Products are shipped using reliable carriers to ensure timely delivery. Each shipment is securely palletized and shrink-wrapped for added stability. Tracking information is provided once the order is dispatched. We offer various shipping options including standard, expedited, and freight services to accommodate different customer needs. Special care is taken to comply with all shipping regulations to guarantee the safe arrival of the Combination Air Release Valve.

FAQ:

Q1: What brand manufactures the Combination Air Release Valve model KARX?

A1: The Combination Air Release Valve model KARX is manufactured by AFC and is also available as an OEM product.

Q2: Where is the Combination Air Release Valve KARX made?

A2: The Combination Air Release Valve KARX is made in China.

Q3: Does the Combination Air Release Valve KARX have any certifications?

A3: Yes, the Combination Air Release Valve KARX is certified to meet the EN1074-4 standard.

Q4: What is the minimum order quantity for the Combination Air Release Valve KARX?

A4: The minimum order quantity for the Combination Air Release Valve KARX is 1 unit.

Q5: What applications are suitable for the AFC Combination Air Release Valve KARX?

A5: The AFC Combination Air Release Valve KARX is suitable for water supply systems, irrigation networks, and other pipeline systems where air release and vacuum prevention are required.
