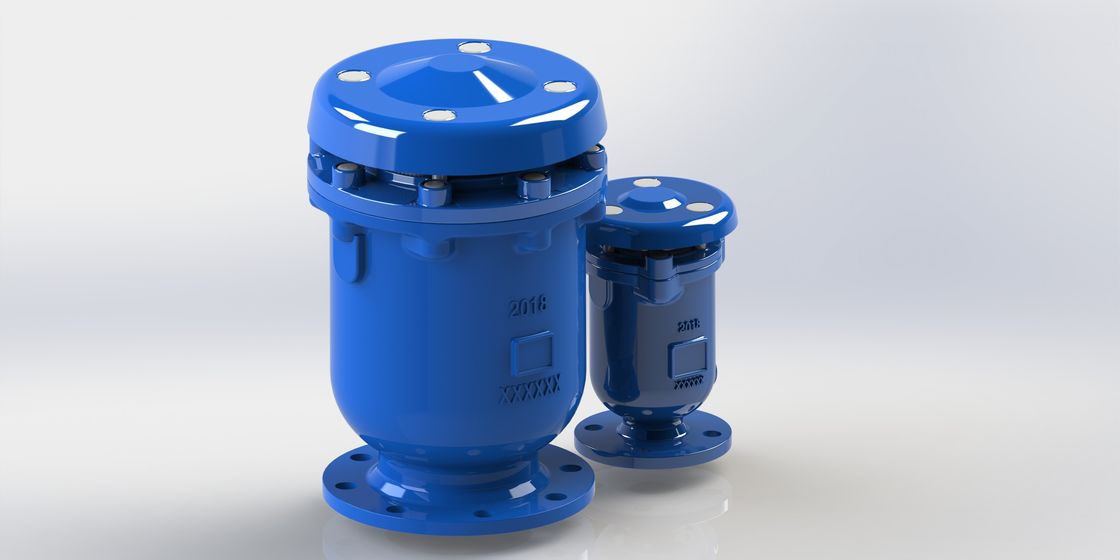

Ductile Iron Combination Air Release Valve 50-300mm with Triple Function for Water Distribution Systems

Product Description:

The Combination Air Release Valve is a highly efficient and reliable component designed for use in water supply and pipeline systems. Manufactured from robust ductile iron, this valve offers exceptional strength and durability, ensuring long-lasting performance even under demanding conditions. The ductile iron construction not only provides superior mechanical properties but also resists corrosion, making it an ideal choice for various industrial and municipal applications.

One of the key features of this Combination Air Release Valve is its resilient seated seal type. The resilient seating ensures a tight and secure seal, preventing any leakage and maintaining system integrity. This seal type is particularly effective in accommodating slight misalignments and wear over time without compromising the valve’s sealing capability. As a result, the valve guarantees reliable operation, minimizing maintenance requirements and reducing downtime in critical water distribution networks.

Available in sizes ranging from 50mm to 300mm, the Combination Air Release Valve caters to a wide range of pipeline diameters, providing flexibility to engineers and system designers. Whether it is a small-scale installation or a large water transmission system, this valve size range allows for seamless integration and optimal performance. The valve is designed to handle various flow rates and pressure conditions, making it a versatile solution for many applications.

The valve features both threaded and flange connection types, offering convenience and adaptability in installation. The end connections are also available in both threaded and flange options, allowing easy compatibility with existing pipeline systems and fittings. This dual connection capability simplifies the installation process and enhances the valve’s usability across different piping configurations. Whether in new installations or retrofit projects, the Combination Air Release Valve provides a practical and user-friendly solution.

One of the standout benefits of this valve is its triple function capability, which combines air release, air vacuum breaking, and air and gas release into a single unit. This multifunctional design enhances the operational efficiency of water supply systems by allowing trapped air to escape during filling, preventing vacuum formation during draining, and releasing accumulated gases during normal operation. By performing these three essential tasks, the valve helps maintain pipeline integrity, reduces water hammer effects, and improves overall system reliability.

The Combination Air Release Valve complies with the EN1074-4 standard, ensuring that it meets stringent European quality and safety requirements. This certification guarantees that the valve has been rigorously tested for performance, durability, and safety, providing confidence to users and system operators. Adherence to EN1074-4 also means the valve is suitable for use in potable water systems, making it a trusted choice for public water supply networks.

Additionally, the valve incorporates a vacuum breaker function that protects pipelines from negative pressure conditions which can cause pipeline collapse or damage. By automatically admitting air into the system when a vacuum is detected, the valve safeguards the pipeline structure and prevents costly repairs. This feature is crucial in maintaining continuous and safe operation in water distribution systems, particularly in areas prone to rapid changes in flow or pressure.

In summary, the Combination Air Release Valve is a versatile and essential component for modern water supply and pipeline systems. Its ductile iron construction, resilient seated seal, wide size range, and flexible connection options make it suitable for a variety of applications. The triple function design, compliance with EN1074-4 standards, and vacuum breaker capability further enhance its value by ensuring system protection, efficiency, and reliability. For engineers and operators seeking a dependable air release solution that combines multiple functions in one compact valve, this product represents an excellent investment.

Features:

• Product Name: Combination Air Release Valve
• Seal Type: Resilient Seated for reliable sealing performance
• End Connection: Available in Threaded and Flange options
• Size Range: 50-300mm to suit various pipeline requirements
• Material: Durable Ductile Iron construction for enhanced strength
• Float Material: High-quality Stainless Steel for corrosion resistance
• Incorporates a Vacuum Breaker to prevent negative pressure build-up
• Utilizes Aero Kinetic technology for efficient air release
• Acts as a Vacuum Breaker to protect pipeline systems from vacuum conditions

Technical Parameters:

Applications:

The Combination Air Release Valve, model KARX, manufactured by AFC / OEM in China, is an essential component designed for efficient air management in various fluid systems. Certified to the stringent EN1074-4 standard, this valve ensures reliable performance and safety in water supply and distribution networks. Its robust construction features a ductile iron valve body that provides excellent durability and resistance to corrosion, making it ideal for long-term use in demanding environments.

This valve is perfectly suited for applications where the removal of trapped air is critical to maintaining system efficiency and preventing issues such as water hammer or flow interruptions. The KARX valve incorporates a stainless steel float mechanism, which ensures precise and consistent operation by automatically releasing air pockets that accumulate in pipelines. Its resilient seated seal type guarantees a tight closure, minimizing leakage and enhancing system integrity under varying pressure conditions rated at PN10, PN16, and PN25.

The versatility of the KARX valve is further emphasized by its connection options, available in both threaded and flange types, facilitating easy installation and compatibility with different pipeline configurations. This makes it suitable for a wide range of industries, including municipal water treatment plants, irrigation systems, HVAC systems, and industrial fluid networks where maintaining optimal airflow is crucial.

In scenarios involving Aero Kinetic fluid dynamics, the Combination Air Release Valve plays a pivotal role by efficiently managing air pockets that can disrupt flow and reduce system performance. Its compliance with EN1074-4 certification standards ensures that it meets high-quality criteria for safety and functionality, providing peace of mind to engineers and operators alike.

Whether it is used in new installations or retrofitting existing pipelines, the KARX valve’s minimum order quantity of just one unit allows for flexible purchasing options to suit both small-scale projects and large infrastructure developments. By integrating this valve into your system, you ensure reliable air release, enhanced operational efficiency, and prolonged equipment lifespan across a variety of application occasions and scenarios.

Customization:

The Combination Air Release Valve model KARX, manufactured by AFC / OEM, is a high-quality product originating from China. Certified with EN1074-4, this valve is designed for reliable performance in potable water systems. Featuring triple functions, it efficiently handles air exhausting to ensure system safety and efficiency. Constructed from durable ductile iron with a stainless steel float, the valve is suitable for operating pressures of PN10, PN16, and PN25. It supports both threaded and flange connection types, accommodating various installation requirements. With a temperature range from 0°C to 80°C, this valve is versatile for different applications. Minimum order quantity starts from 1 unit, making it ideal for customized solutions.

Support and Services:

Product Technical Support and Services for the Combination Air Release Valve include comprehensive assistance to ensure optimal performance and longevity of the valve. Our support team offers expert guidance on installation, operation, maintenance, and troubleshooting to help you maximize the efficiency of your air release system.

We provide detailed product documentation, including user manuals, technical specifications, and installation guidelines to facilitate proper setup and use. Additionally, our services encompass routine maintenance advice and tips to prevent common issues such as air lock, leakage, and corrosion.

For technical inquiries, our specialists are available to assist with system design recommendations and to address any performance concerns. We also offer repair and replacement services to minimize downtime and maintain system reliability.

By leveraging our technical expertise and dedicated support services, customers can ensure that their Combination Air Release Valve operates seamlessly within their fluid management systems.

Packing and Shipping:

The Combination Air Release Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in protective material and securely placed in a sturdy cardboard box to prevent damage. The packaging is designed to withstand handling and environmental factors, keeping the product safe until it reaches the customer.

For shipping, the product is labeled with all necessary handling instructions and shipping details. We use reliable courier services to deliver the Combination Air Release Valve promptly and safely to your specified location. Tracking information is provided to keep you updated throughout the shipping process.

FAQ:

Q1: What is the brand and model number of the Combination Air Release Valve?

A1: The Combination Air Release Valve is available under the brand AFC / OEM with the model number KARX.

Q2: Where is the Combination Air Release Valve manufactured?

A2: This product is manufactured in China.

Q3: Does the Combination Air Release Valve have any certifications?

A3: Yes, it is certified with EN1074-4.

Q4: What is the minimum order quantity for the Combination Air Release Valve?

A4: The minimum order quantity for this product is 1 unit.

Q5: Can the Combination Air Release Valve be customized or ordered as an OEM product?

A5: Yes, the product is available both as AFC brand and OEM, allowing for customization based on requirements.
