Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser

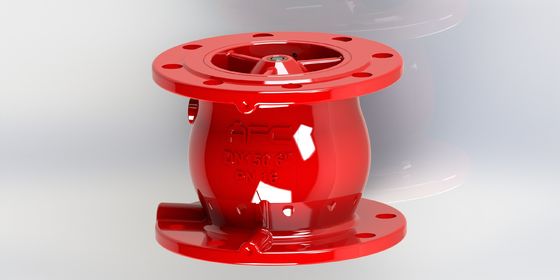

Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser

  • Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser
  • Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser
  • Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser
  • Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser
Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: WRAS, NSF61/372
Model Number: NSCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser Model Code: NSCV
Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
Fuction: Anti Water Hammer Coating: EPOXY
Color: Blue Head Loss: Low
High Light:

Quick Close Nozzle Check Valve

,

Nozzle Check Valve FBE Coated

,

Nozzle Check Valve With Diffuser





Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser





Description



NSCV- Non Slam Check Valve is used as a protection device against reverse flow when power fails in areas where noise pollution or water hammering is a critical issue. It has two significant features quiet performance but also low head loss.



Features:



Very short face to face distance, closing is so quick up to max 0.2sec speed, switch procedure is only about 20% of valve bore diameter, hydrodynamic design with spring ensure non slamming and to minimize the water hammer



Advance diffuser design maintains the streamline flow and reduces the water head loss to save pumping power



Sphere disc head design gives lower flow resistance coefficient than flat type



Powder fusion epoxy coating with both inside and outside valve for corrosion is thicker than liquid painting and more fastened as well





Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Service Fields:


Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.





Dimension:



DN50 - DN350

Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 0



Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 1



DN400 - DN600

Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 2

Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 3





Materials:



DN50-DN350

Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 4Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 5



Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 6Soft Sealing Quick Close FBE Coated Nozzle Check Valve With Diffuser 7
