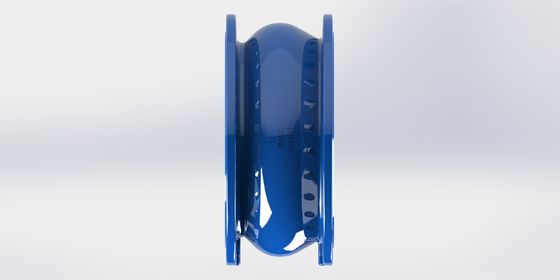

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design

  • Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design
  • Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design
  • Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design
  • Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design
Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design
Product Details:
Place of Origin: China
Brand Name: AFC,OEM
Certification: WRAS, NSF61/372
Model Number: NSCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design Model Code: NSCV
Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
Fuction: Anti Water Hammer Coating: EPOXY
Color: Blue Head Loss: Low
High Light:

Non Slam Check Valve Ductile Iron

,

Dynamic Design No Slam Check Valve

,

Non Slam Check Valve With Diffuser

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design



Description:



Non Slam Check Valve is used as a protection device against reverse flow when power failed in areas where noise pollution or water hammering happened. It can provide not only quiet performance but also low head loss.



Features:



NSCV is used against water reverse flow and protects pump and other devices from water hammer harmness.

Advance diffuser design maintains the streamline flow and reduces the water head loss to save pumping power.

Sphere disc head design makes flow resistance coefficient lower than flat type does.

Powder fusion epoxy coating NSF certificated.

Bronze bushing can reduce the stem wearing during working and extended the service time.

Choosing the suitable NSCV into working,can return the investment around one year by pumping energy saving

Closing speed is very quick(max 0.2sec) and the stroke is only about 20% of valve bore diameter. That can ensure non slamming and minimize the water hammer by hydrodynamic design with spring.





Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Service Fields:
generally used forprecleaned sewage water, clean water, Fire-fighting, Irrigation, Cooling and HVAC System.



Dimension:

DN50 - DN350

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 0

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 1







DN400 - DN600



Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 2

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 3



Materials:



DN50-DN350

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 4Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 5



Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 6Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 7

Ductile Iron Non Slam Check Valve With Diffuser Dynamic Design 8
