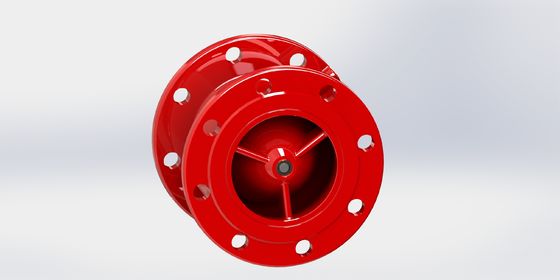

Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated

Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated

  • Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated
  • Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated
  • Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated
  • Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated
Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated
Product Details:
Place of Origin: China
Brand Name: AFC,OEM
Certification: WRAS, NSF61/372
Model Number: NSCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: price negotiable
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Quick Close Ductile Iron Non Slam Swing Check Valve With Epoxy Coated Model Code: NSCV
Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
Fuction: Anti Water Hammer Coating: EPOXY
Color: Blue Head Loss: Low
High Light:

Non Slam Swing Check Valve Blue

,

Quick Closed Anti Water Hammer Valve

,

Ductile Iron Anti Water Hammer Valve

Quick Close Ductile Iron Non Slam Swing Check Valve With Epoxy Coated



Description:



Non Slam Check Valve has hydrodynamic design with spring that can ensure non slamming and minimize the water hammer.  It has very short face to face distance, closing quickly up to max 0.2sec and the stroke is only about 20% of valve bore diameter.The advance diffuser design keeps the streamline flow and reduces the water head loss to save pumping power. Overall it has a very low headloss and strong capability to minimize water hammer.



Features:



·High strength ductile iron body used for durability and less weight.
·Advanced dynamic design of single body with diffuser provides streamline flow and assures lower head loss.
·One of the lowest head loss check valve, big save in pumping power cost, valve disc with shorter stroker and spring reverse faster than most of check valve.
·Coated with powder epoxy both inside & outside for corrosion resistance.
·Bronze bushing reduce wearing problem during operation.
·Hydrodynamic design with spring ensures non slamming and water hammerless.
·Stainless steel spring hidden in the diffuser under protection while valve in operation.
·Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
· Installation can be vertical/horizontal/inclined.
·Comply with EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange dimension.



Service Fields:
Mainly used for clean water, precleaned sewage water, Irrigation, Fire-fighting,Cooling and HVAC System.





Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Dimension:

DN50 - DN350

Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 0

Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 1







DN400 - DN600



Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 2

Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 3



Materials:



DN50-DN350

Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 4Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 5



Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 6Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 7Ductile Iron Non Slam Swing Check Valve Quick Closed Epoxy Coated 8
