Home ProductsPressure Management Valve

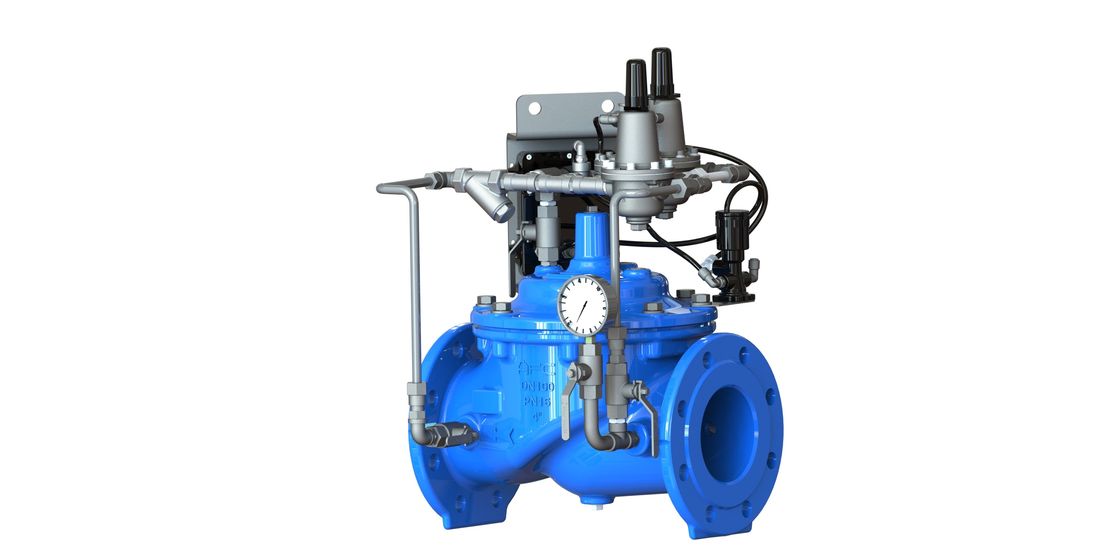

2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve

2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve

    • 2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve
    • 2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve
    • 2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve
    • 2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve
  • 2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve

    Product Details:

    Place of Origin: China
    Brand Name: AFC
    Certification: ISO9001
    Model Number: P26M,P26D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: plywood cases
    Delivery Time: 20-60 days
    Payment Terms: L/C, T/T
    Supply Ability: Based on order
    Contact Now
    Detailed Product Description
    Product Name: Non Revenue Intelligent Water Pressure Safety Valve Material: Ductile Iron - GJS500-7
    Pilot: SS304 Controller: 24 VDC (P26D)
    Coating: EPOXY Type: Pressure Management
    Contol: Pressure
    High Light:

    Non Revenue Pressure Safety Valve

    ,

    Epoxy Coating Pressure Safety Valve

    ,

    2.5Mpa Pressure Safety Valve





    Non Revenue Water Pressure Management Valve Switch Pressure Based On Time Ductile Iron EPOXY Coated







    Description:



        In city with DMA management, water company can use Pressure Management Valve to control the pressure of each single isolated DMA and decrease the leakage without swapping the broken pipes. In such operation, water authority can decrease the leakage rate and NRW - Non Revenue Water issue.



    Feature:



    10 years life lithium battery

    • Switch pressure based on time
    • 6 time period in one day
    • 7 days can have different settings in one week


    Service Fields:


    For water system, irrigation system.



    Technical Data:


    Size Range: DN50~DN800mm
    Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
    Working Temperature:-10°C- 80°C Suitable
    Media: Water
    End connection: PN 10 / PN 16 / PN 25
    Consult Factory for other applications
    IP68 for water resistance
    Comply with BS EN 1074-5, ISO 5208, BS
    EN 12266-1, BS EN 558-1



    Series Description:



    Pressure Management Valve Type Series description
    Type 1 Type 2 Type 3
    Change Valve Pressure Based on Time Change Valve Pressure Based on Flow Rate Change Valve Pressure Based on Flow Rate Dynamically.





    Materials And Dimensions DN50-DN350

    2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve 02.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve 1



    2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve 2





    Materials And Dimensions DN400-DN800



    2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve 32.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve 4



    2.5Mpa Epoxy Coating Non Revenue Pressure Safety Valve 5
