Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC |
| Certification: | ISO9001 |
| Model Number: | P26M |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price negotiable |
| Packaging Details: | plywood cases |
| Delivery Time: | 20-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Product Name: | Intelligent Pressure Management Valve P26M Remote Controller By Bluetooth | Model Code: | P26M |
|---|---|---|---|
| Material: | Ductile Iron - GJS500-7 | Pilot: | SS304 |
| UI: | Remote Controller By Bluetooth | Coating: | EPOXY |
| Type: | Pressure Management Type 1 | Power: | Battery |
| Highlight: | IP68 Pressure Management Valve,Bluetooth Remote Control Pressure Management Valve,ductile iron pressure control valve |
||

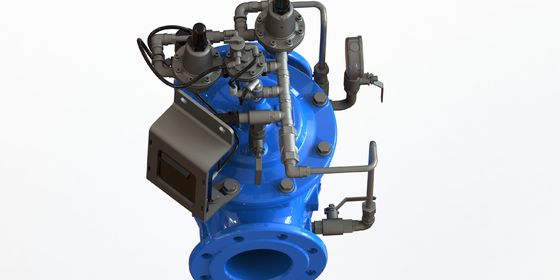

Intelligent Pressure Management Valve P26M Remote Controller By Bluetooth
Description:
P26M can switch pressure based on time and 6 time period in one day. 7 days can have different settings in one week, for example, you can have weekday and weekend with different settings. No need extra electricity. P26M has its own battery with 10 years guarantee.
Featurea:
•10 years life lithium battery
• A black control box and solenoid valve connected to the control tube system.
• P26M - 6 different time zone with 2 different pressure in one day. Each day is independent for setting.
• Single remote controller can be fitted for multiple valves setting use by bluetooth connection , no matter numbers of valves
• Controller box can be set either by timing or flow rate thru remote controller
Service Fields:
For water system, irrigation system.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN 10 /16 / 25 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Series Description:
| Pressure Management Valve Type Series description | ||
| Type 1 - P26M | Type 2- P26U | Type 3 - P26D |
| Change Valve Pressure Based on Time | Change Valve Pressure Based on Flow Rate | Change Valve Pressure Based on Flow Rate Dynamically. |
Materials And Dimensions DN50-DN350
Materials And Dimensions DN400-DN800
