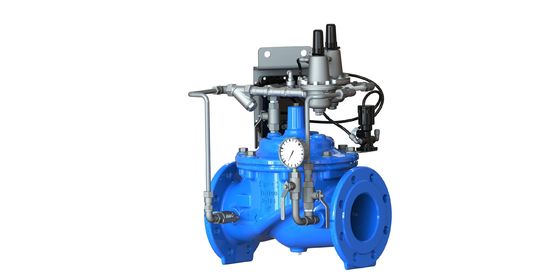

Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth

Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth

  • Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth
  • Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth
  • Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth
  • Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth
Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: ISO9001
Model Number: P26M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: plywood cases
Delivery Time: 20-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: Ductile Iron - GJS500-7 Pilot: SS304
UI: Remote Controller By Bluetooth Coating: EPOXY
Type: Pressure Management Type 1 Power: Battery
Product Name: Intelligent Type One Pressure Control Valve Model Code: P26M
High Light:

pressure control valve

,

time control valve






                           Intelligent type one Pressure Control Valve - P26M  Controlled By Bluetooth



Description:
    P26M can adapt pressure based on time and 6 time period in one day. 7 days can have different settings in one week. For example, you can have weekend and weekday with different settings. P26M has its own battery with 10 years guarantee so that it don't need extra electricity.



Featurea:

• P26M - 6 different time zone with 2 different pressure in one day. Each day is independent for setting.
• Controller box can be set either by timing or flow rate thru remote controller
• Single remote controller can be fitted for multiple valves setting use by bluetooth connection , no matter numbers of valves
• A black control box and solenoid valve connected to the control tube system.
• 10 years life lithium battery



Service Fields:


For irrigation systemm, water syste.


Technical Data:


SizeDN50-DN800
Working Temperature- 10C- 80C
FlangeAISI B16.1 Or PN 10 /16 / 25
Flow MediaClean Water


Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Series Description:


Pressure Management Valve Type Series description
Type 1 - P26MType 2- P26UType 3 - P26D
Change Valve Pressure Based on TimeChange Valve Pressure Based on Flow RateChange Valve Pressure Based on Flow Rate Dynamically.



Materials And Dimensions DN50-DN350
Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth 0

No.Part NameMaterialStandard
1BodyDuctile IronGJS500-7
2SeatStainless SteelAISI304/316
3O-ringRubberNBR
4O-ringRubberNBR
5BoltStainless SteelA2/A4
6WasherStainless SteelA2/A4
7BonnetDuctile IronGJS500-7
8BushBronzeC61900
9SpringStainless SteelAISI304/316
10Caulking NutStainless SteelA4
11DiaphragmNylon Reinforced rubberEPDM+Nylon Fabric
12Fixing holderDuctile IronGJS500-7
13Disc HolderDuctile IronGJS500-7
14SealRubberEPDM
15Seat RetainerStainless SteelAISI304/316
16StemStainless SteelAISI304/316
17PlugStainless SteelAISI304/316
18ScrewStainless SteelA2/A4
19PlugStainless SteelA2/A4
20WasherStainless SteelA2/A4


Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth 1


Materials And Dimensions DN400-DN800

Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth 2

No.Part NameMaterialStandard
1BodyDuctile IronGJS500-7
2SeatStainless SteelAISI304/316
3ScrewStainless SteelA2/A4
4ScrewStainless SteelA2/A4
5ScrewStainless SteelA2/A4
6SpringStainless SteelAISI304/316
7BonnetDuctile IronGJS500-7
8BushBronzeC61900
9O-ringRubberNBR
10Fix WasherBronzeC61900
11DiaphragmNylon Reinforced rubberEPDM+Nylon Fabric
12Eye BoltsCarbon Steel1040
13Fixing holderDuctile IronGJS500-7
14Disc HolderDuctile IronGJS500-7
15SealRubberEPDM
16Seat RetainerDuctile IronGJS500-7
17StemStainless SteelAISI304/316
18PlugStainless SteelAISI304/316
19O-ringRubberNBR
20CapDuctile IronGJS500-7
21PlugStainless SteelAISI304/316
22ScrewStainless SteelA2/A4
23O-ringRubberNBR
24ScrewStainless SteelA2/A4


Intelligent Type One Pressure Management Valve P26M Remote Controller By Bluetooth 3
