Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC |
| Certification: | ISO 9001 |
| Model Number: | P400 |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | 10-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Product Name: | Flow Control Pilot | Material: | Stainless Steel SS304 |
|---|---|---|---|
| Model Code: | P400 | P10B: | Bi Level Float Control Pilot |
| P200: | Pressure Reducing Pilot | P500: | Pressre Relief Pilot |
| Others: | On/Off , Altitude , Pressure Differential, Surge Anticipate | ||
| Highlight: | control valve kit,valve kit |
||

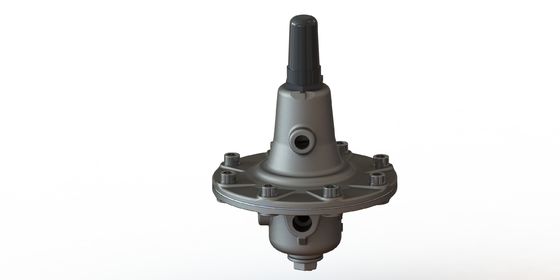

Control Valve Accessories Flow Control Pilot with SS304 body
Description:
P400 is a kind of flow control pilot that can help A400 control the flow rate of water supplying pipeline by keeps pre-setting flow volume. It limits excessive flow within pre-setting value. Even the upstream pressure changes, downstream flow volume will not be affacted.
| No. | Description | Material | Standard |
| 1 | Cap | Plastic | ABS |
| 2 | Adjusting Screw | Stainless Steel | AISI304 |
| 3 | Jam Nut | Stainless Steel | AISI304 |
| 4 | Spring table | Stainless Steel | AISI304 |
| 5 | Bonnet | Stainless Steel | AISI304 |
| 6 | Spring | Spring Steel | SiCrV |
| 7 | Nut | Stainless Steel | A2 |
| 8 | Spring table | Spring Steel | Mn-steel+Ni Plated |
| 9 | Fixing Holder | Stainless Steel | AISI304 |
| 10 | Screw | Stainless Steel | A2 |
| 11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon |
| 12 | O-ring | Rubber | NBR |
| 13 | Gasket | Stainless Steel | AISI304 |
| 14 | stem | Stainless Steel | AISI304 |
| 15 | Body | Stainless Steel | AISI304 |
| 16 | Disc | Stainless Steel | AISI304+EPDM |
| 17 | O-ring | Rubber | NBR |
| 18 | Plug | Stainless Steel | AISI304 |
| 19 | O-ring | Rubber | NBR |
