| Product Name: | Altitude Control Pilot | Model Code: | P10A |
|---|---|---|---|
| Material: | Stainless Steel SS304 | ||
| High Light: | Altitude Control Valve Pilot,SS304 Valve Pilot,Altitude Control Valve Kit |
||

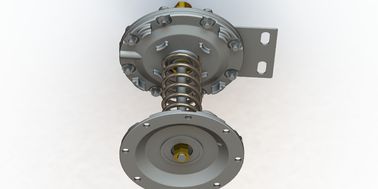

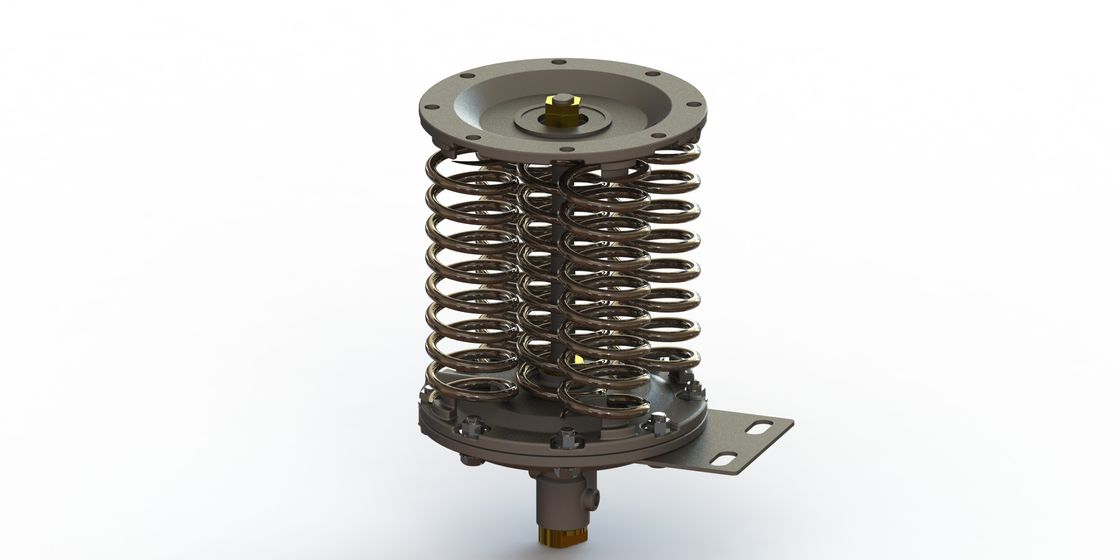

SS304 Altitude Control Pilot Control Valve Kit With Long Service Life Time
Description:
P10A is an altitude control pilot that can help A10A controls the water level in high rise water tank. A10A maintains a preset water level of reservoirs or water tanks. The A10A valve is activated by line pressure, and is commanded by an Altitude pilot P10A. The Altitude pilot is mounted on the valve, therefore there is no installation required on top of the reservoir. The A10A controls the maximum water level of the reservoir through controlling the maximum water column pressure generated by the water inside the water storage.
| No. | Description | Material | Standard |
| 1 | Spring cover | Stainless steel | AISI304 |
| 2 | Sleeve | Brass | CZ122 |
| 3 | Washer | Stainless steel | AISI304 |
| 4 | Adjusting Nut | Brass | CZ122 |
| 5 | Stem Upper | Stainless steel | AISI304 |
| 6 | Spring | Spring Steel | Mn-steel+Ni Plated |
| 7 | Bush | Brass | |
| 8 | O-ring | Rubber | NBR |
| 9 | O-ring | Rubber | NBR |
| 10 | Fixing Holder | Stainless steel | AISI304 |
| 11 | O-ring | Rubber | NBR |
| 12 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
| 13 | Diaphragm retainer | Stainless Steel | AISI304 |
| 14 | Connecting plate | Stainless Steel | AISI304 |
| 15 | Stem nut | Stainless Steel | AISI304 |
| 16 | Screw | Stainless Steel | AISI304 |
| 17 | Washer | Stainless Steel | AISI304 |
| 18 | Bonnet | Stainless Steel | AISI304 |
| 19 | Body | Stainless Steel | AISI304 |
| 20 | Nut | Stainless Steel | AISI304 |
| 21 | Nut | Brass | CZ122 |
| 22 | O-ring | Rubber | NBR |
| 23 | Shaft | Stainless Steel | AISI304 |
| 24 | Disc | Stainless Steel+Rubber | A304+EPDM |
| 25 | Spring | Stainless Steel | AISI304 |
| 26 | Plug | Brass | CZ122 |
| 27 | O-ring | Rubber | NBR |
| 28 | O-ring | Rubber | NBR |
