Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC |
| Certification: | ISO 9001 |
| Model Number: | P800 |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | 10-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Material: | Stainless Steel SS304 | P400: | Flow Control Pilot |
|---|---|---|---|
| P800: | Differential Pressure Pilot | P200: | Pressure Reducing Pilot |
| P500: | Pressre Relief Sustaining Pilot | Others: | On Off , Altitude , Pressure Differential, Surge Anticipate |
| Highlight: | control valve kit,valve kit |
||

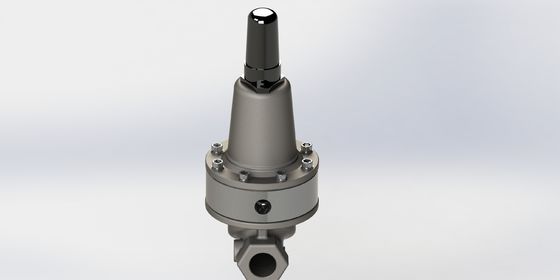

Stainless Steel 304 Control Valve Accessories Diaphragm Differential Pressure Pilot
The P800 is a differential pressure pilot. It can help A800 which is a differential Pressure Relief Valve is a hydraulically operated, pilot-controlled, modulating valve. It is designed to maintain a constant pressure differential between any two pressure points in a system where the closing of the valve directly causes
the differential pressure to increase. The valve tends to open on an increase in differential pressure and close on a decrease in differential pressure.
| No. | Description | Material | Standard |
| 1 | Cap | Plastic | ABS |
| 2 | Adjusting Screw | Stainess Steel | AISI304 |
| 3 | Jam Nut | Stainess Steel | AISI304 |
| 4 | Spring table | Stainess Steel | AISI304 |
| 5 | Bonnet | Stainess Steel | AISI304 |
| 6 | Spring | Spring Steel | SiCrV |
| 7 | Nut | Stainess Steel | A2 |
| 8 | Spring table | Spring Steel | Mn-steel+Ni Plated |
| 9 | Fixing Holder | Stainess Steel | AISI 304 |
| 10 | Screw | Stainess Steel | A2 |
| 11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon |
| 12 | Gasket | Stainess Steel | AISI304 |
| 13 | O-ring | Rubber | NBR |
| 14 | Internal Body | Stainess Steel | AISI304 |
| 15 | O-ring | Rubber | NBR |
| 16 | O-ring | Rubber | NBR |
| 17 | Stem | Stainess Steel | AISI304 |
| 18 | Disc | Stainess Steel+Rubber | AISI304+EPDM |
| 19 | Body | Stainess Steel | AISI304 |
| 20 | O-ring | Rubber | NBR |
