Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC |
| Certification: | ISO9001 |
| Model Number: | P26U |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD RMB |
| Packaging Details: | plywood cases |
| Delivery Time: | 20-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Material: | Ductile Iron - GJS500-7 | Pilot: | SS304 |
|---|---|---|---|
| UI: | Remote Controller By Bluetooth | Coating: | EPOXY |
| Type: | Pressure Management Type 2 | Power: | Battery |
| High Light: | pressure control valve,adjustable pressure reducing valve |
||

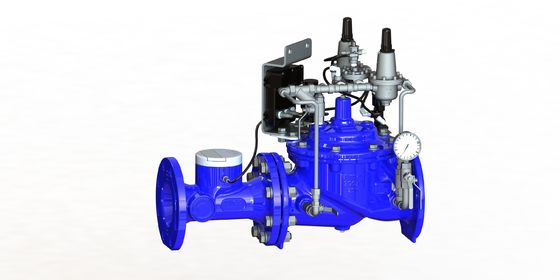

Type Two Pressure Management valve Switch Pressure Based On Flow Rate Ductile Iron EPOXY Coated
Description:
P26U can switch two sets of pressure based on instant the flow rate. It helps to manage the pressure in when flow rate demand varies.
Feature:
•10 years life lithium battery
• A black control box and solenoid valve connected to the control tube system.
• P26U - Switch 2 different pressure based on flow rate.
• Single remote controller can be fitted for multiple valves setting use by bluetooth connection , no matter numbers of valves
• Remote Controller
• Controller box can be set either by flow rate thru remote controller
Service Fields:
For water system, irrigation system.
Technical Data:
Size Range: DN50~DN800mm
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
Working Temperature:-10°C- 80°C Suitable
Media: Water
End connection: PN 10 / PN 16 / PN 25
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS
EN 12266-1, BS EN 558-1
Series Description:
| Pressure Management Valve Type Series description | ||
| Type 1 - P26M | Type 2- P26U | Type 3 - P26D |
| Change Valve Pressure Based on Time | Change Valve Pressure Based on Flow Rate | Change Valve Pressure Based on Flow Rate Dynamically. |
Materials And Dimensions DN50-DN350
Materials And Dimensions DN400-DN800
