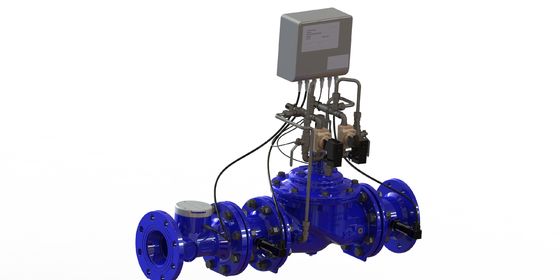

Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve

Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve

  • Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve
  • Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve
  • Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve
Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: ISO9001
Model Number: P26D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: plywood cases
Delivery Time: 20-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: Ductile Iron - GJS500-7 Pilot: SS304
Controller: 24 VDC (P26D) Coating: EPOXY
Type: Pressure Management Contol: Pressure
Highlight:

pressure control valve

,

time control valve





NRW Non Revenue Water Pressure Management Valve Dynamically Change Pressure Ductile Iron EPOXY Coated​







Description:



P26 series is a pressure management valve

1. P26D can change the outlet pressure based on real time flow rate. You can define the curve between flow rate and outlet pressure. It can vary the pressure based on the flow rate and demand and keeps the pressure stable in the end of distribution system.



Benefit:



•Reduce water leakages, electricity consuming and man power.
•Increase company profit by reducing Non-Revenue Water.
•Water Management system from DMA (District Metering Area) to DMZ (District Metering Zone)



Feature:



24 VDC as power input
• A touch screen to change settings in field easily.
• Remote setting by SCADA through RTU is available.

Modbus as data access protocal
• Changing the pressure based on pre-set flow rate. Several flow rate with several pressure.





Service Fields


For water system, irrigation system.



Technical Data:


Size Range: DN50~DN800mm
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
Working Temperature:-10°C- 80°C Suitable
Media: Water
End connection: PN 10 / PN 16 / PN 25
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS
EN 12266-1, BS EN 558-1



Series Description:



Pressure Management Valve Type Series description
Type 1 Type 2 Type 3
Change Valve Pressure Based on Time Change Valve Pressure Based on Flow Rate Change Valve Pressure Based on Flow Rate Dynamically.





Materials And Dimensions DN50-DN350

Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve 0Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve 1



Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve 2





Materials And Dimensions DN400-DN800



Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve 3Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve 4



Dynamically Change Water Flow Regulator Valve , EPOXY Coated Pressure Release Valve 5
