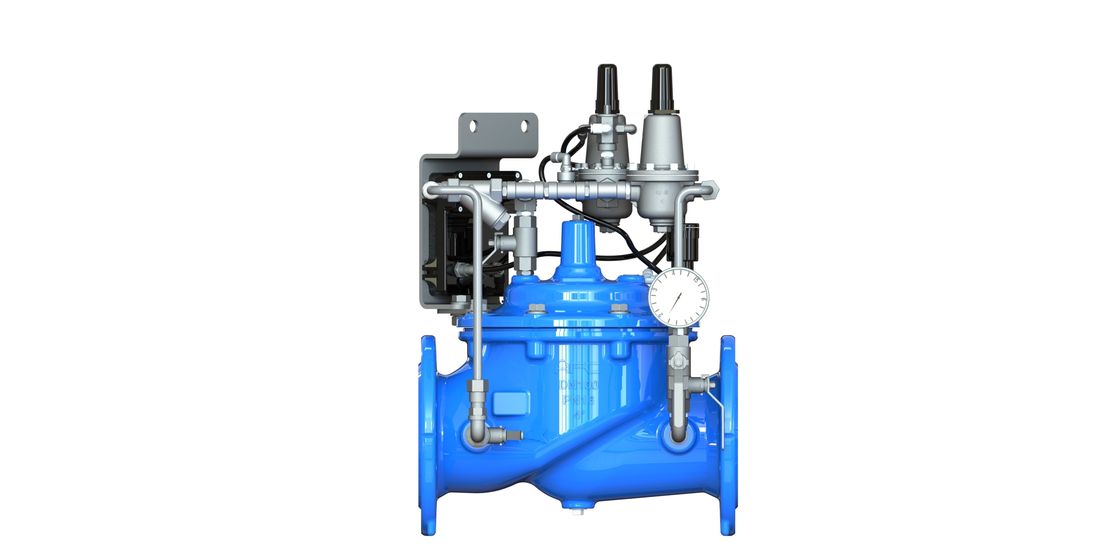

Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve

Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve

    • Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve
    • Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve
    • Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve
  • Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve

    Product Details:

    Place of Origin: China
    Brand Name: AFC
    Certification: ISO9001
    Model Number: P26M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD RMB
    Packaging Details: plywood cases
    Delivery Time: 20-60 days
    Payment Terms: L/C, T/T
    Supply Ability: Based on order
    Contact Now
    Detailed Product Description
    Material: Ductile Iron - GJS500-7 Pilot: SS304
    UI: Remote Controller By Bluetooth Coating: EPOXY
    Type: Pressure Management Type 1 Power: Battery





    Non Revenue Water Control By P26M Pressure Management valve Switch Pressure Based On Time







    Description:



        P26M can switch two sets of pressure in six different time zones in one day. It helps to manage the pressure in different time zone when flow rate demand varies.



    Benefit:



    1. Energy Saving

    By average, 70% - 75% of electricity consuming of a water plant is for operating the water valves. By managing the water distribution line pressure, the usage of the pump can be optimize and electricity consuming can be reduced massively.

    2. Water Saving

    By managing the pressure in water distribution line, the leaking from pipeline can be controlled well by killing the redundent pressure.



    Service Fields:


    For water system, irrigation system.



    Technical Data:


    IP68 for water resistance
    Comply with BS EN 1074-5, ISO 5208, BS
    EN 12266-1, BS EN 558-1

    Size DN50-DN800
    Working Temperature - 10C- 80C
    Flange AISI B16.1 Or PN 10/16/25
    Flow Media Clean Water



    Series Description:



    Pressure Management Valve Type Series description
    Type 1 - P26M Type 2- P26U Type 3 - P26D
    Change Valve Pressure Based on Time Change Valve Pressure Based on Flow Rate Change Valve Pressure Based on Flow Rate Dynamically.





    Materials And Dimensions DN50-DN350

    Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing ValveBattery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve



    Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve





    Materials And Dimensions DN400-DN800



    Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing ValveBattery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve



    Battery Power Time Control Valve , Bluetooth Adjustable Pressure Reducing Valve
