Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time

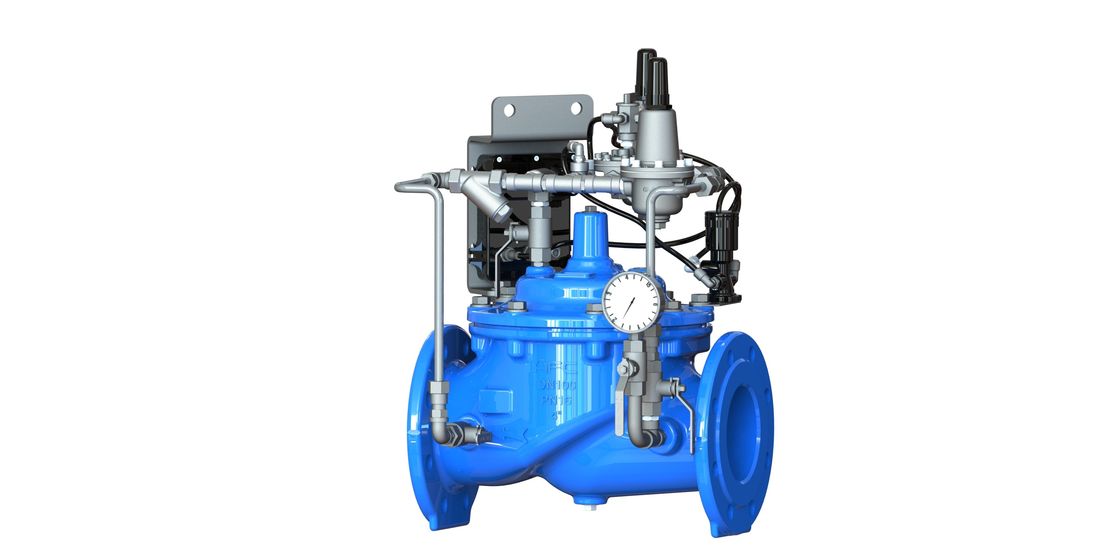

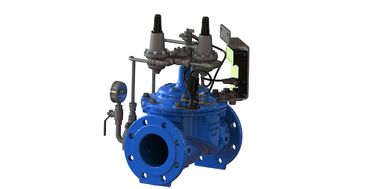

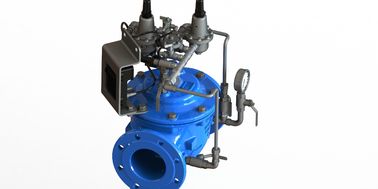

Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time

  • Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time
  • Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time
  • Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time
Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: ISO9001
Model Number: P26M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: plywood cases
Delivery Time: 20-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: Ductile Iron - GJS500-7 Pilot: SS304
Controller: 24 VDC (P26D) Coating: EPOXY
Type: Pressure Management Contol: Pressure
Highlight:

adjustable pressure reducing valve

,

time control valve





Non Revenue Water Pressure Management Valve Switch Pressure Based On Time Ductile Iron EPOXY Coated







Description:



    In city with DMA management, water company can use Pressure Management Valve to control the pressure of each single isolated DMA and decrease the leakage without swapping the broken pipes. In such operation, water authority can decrease the leakage rate and NRW - Non Revenue Water issue.



Feature:



10 years life lithium battery

• Switch pressure based on time
• 6 time period in one day
• 7 days can have different settings in one week


Service Fields:


For water system, irrigation system.



Technical Data:


Size Range: DN50~DN800mm
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
Working Temperature:-10°C- 80°C Suitable
Media: Water
End connection: PN 10 / PN 16 / PN 25
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS
EN 12266-1, BS EN 558-1



Series Description:



Pressure Management Valve Type Series description
Type 1 Type 2 Type 3
Change Valve Pressure Based on Time Change Valve Pressure Based on Flow Rate Change Valve Pressure Based on Flow Rate Dynamically.





Materials And Dimensions DN50-DN350

Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time 0Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time 1



Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time 2





Materials And Dimensions DN400-DN800



Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time 3Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time 4



Non Revenue Water Pressure Safety Valve Switch Pressure Based On Time 5
