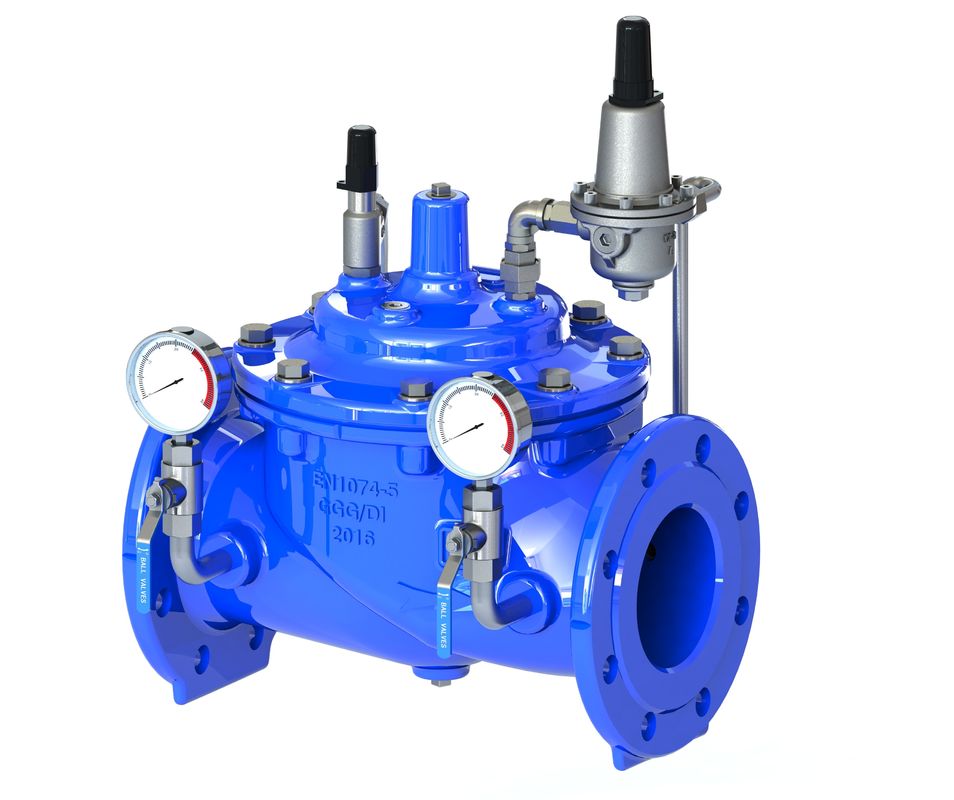

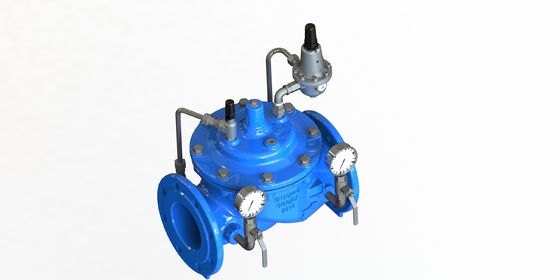

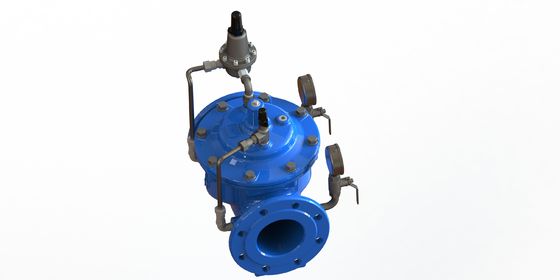

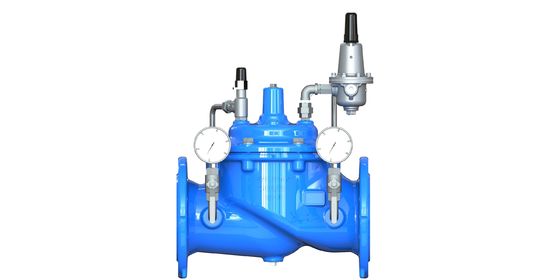

Water Pressure Reducing Valve with Nylon Reinforcement EPDM Diaphragm GGG50 Material and SS304 Seat

Product Description:

The Water Pressure Reducing Valve is an essential component for managing and controlling water pressure in various industrial and commercial piping systems. Designed with precision and durability in mind, this valve ensures optimal performance and reliability by effectively reducing high inlet water pressure to a stable, lower outlet pressure. This not only protects downstream equipment from potential damage caused by excessive pressure but also enhances the overall efficiency and safety of the system.

One of the standout features of this valve is its diaphragm, which is constructed with nylon reinforcement combined with EPDM (ethylene propylene diene monomer) material. This innovative diaphragm design offers superior flexibility, strength, and resistance to wear, ensuring a long service life even under demanding conditions. The EPDM material is particularly resistant to heat, ozone, and various chemicals, making the valve suitable for a wide range of applications.

The valve seat is made from stainless steel 304 (SS304), known for its excellent corrosion resistance and mechanical properties. The use of SS304 in the seat ensures a tight seal and contributes to the valve’s overall durability and maintenance-free operation. Stainless steel 304 is widely recognized for its ability to withstand harsh environments, which makes this valve reliable even in challenging water systems.

Connection to the piping system is facilitated through a flange type connection, which provides a secure and leak-proof joint. Flanged connections are preferred in many industrial applications due to their ease of installation, removal, and maintenance. This ensures that the valve can be integrated seamlessly into existing systems or incorporated into new installations without difficulty.

The entire valve body is epoxy coated, providing an additional layer of protection against corrosion and environmental impact. This epoxy coated finish not only enhances the valve’s durability but also improves its aesthetic appearance. The coating is resistant to chipping, cracking, and peeling, ensuring that the valve maintains its integrity and performance over time.

Another critical aspect of this Water Pressure Reducing Valve is its pressure adjustability. The valve is designed to allow easy adjustment of the outlet pressure, enabling users to tailor the system pressure according to specific requirements. This feature enhances system flexibility and control, making it suitable for a broad range of applications, from municipal water supply systems to industrial process control.

Additionally, the valve is equipped with a stainless steel 304 pilot P200, which acts as a control mechanism to regulate the pressure accurately. The SS304 pilot P200 is robust and highly reliable, ensuring precise pressure control and consistent valve operation. The integration of this pilot enhances the valve’s responsiveness and stability, contributing to overall system efficiency.

For packaging and transportation, the valve is securely packed in a plywood case, offering superior protection against damage during shipping and handling. The plywood case ensures that the valve arrives at its destination in perfect condition, ready for immediate installation and use.

In summary, the Water Pressure Reducing Valve with its epoxy coated body, pressure adjustable mechanism, nylon reinforced EPDM diaphragm, SS304 seat, flange connection, and stainless steel 304 pilot P200 is a high-quality solution for managing water pressure in various settings. Its robust construction, corrosion resistance, and precise control features make it an ideal choice for engineers and system designers aiming to ensure safe, efficient, and reliable water pressure regulation.

Features:

• Product Name: Water Pressure Reducing Valve
• Connection Type: Flange
• Flange Standard: EN1092-2
• Packing: Plywood Case
• Application: Water
• Seat Material: SS304
• Nylon Reinforced for enhanced durability
• Pressure Adjustable for precise control
• Epoxy Coated for corrosion resistance

Technical Parameters:

Applications:

The AFC Water Pressure Reducing Valve, available under model numbers A200 and R200 and manufactured in China, is an essential component designed to regulate and reduce water pressure in various piping systems. Crafted from high-quality GGG50 material, this valve ensures durability and robustness, making it suitable for demanding water applications. The valve features a flange connection type, which allows for secure and easy installation in a wide range of industrial and commercial water systems.

This product is equipped with the Stainless Steel 304 Pilot P200, a key feature that enhances its precision and reliability. The Stainless Steel 304 Pilot P200 pilot valve ensures smooth operation and stable pressure control, even under fluctuating water flow conditions. This makes the AFC valve highly efficient for maintaining consistent downstream pressure, protecting pipelines and equipment from damage due to excessive pressure.

One of the standout features of the AFC Water Pressure Reducing Valve is its pressure adjustable capability. Users can easily adjust the valve settings to meet specific system requirements, ensuring optimal performance and energy efficiency. This flexibility is particularly valuable in scenarios where water pressure needs to be carefully managed to prevent leaks, bursts, or operational inefficiencies.

The valve is coated with a durable EPOXY layer, providing excellent resistance against corrosion and environmental factors. This coating extends the lifespan of the valve, making it suitable for use in various water systems, including municipal water supply networks, industrial water processing plants, irrigation systems, and commercial plumbing installations.

Typical application occasions and scenarios for the AFC Water Pressure Reducing Valve include water treatment facilities, where precise pressure control is critical to system performance; residential and commercial buildings, where stable water pressure ensures comfort and safety; and industrial plants, where equipment protection and process stability depend on regulated water pressure. Its robust construction and reliable performance also make it ideal for use in agricultural irrigation systems, minimizing water wastage and protecting infrastructure.

In summary, the AFC Water Pressure Reducing Valve with Stainless Steel 304 Pilot P200 is a versatile, pressure adjustable solution designed for water applications that demand durability, precision, and corrosion resistance. Whether used in municipal, industrial, commercial, or agricultural settings, this valve ensures efficient water pressure management and long-term operational reliability.
