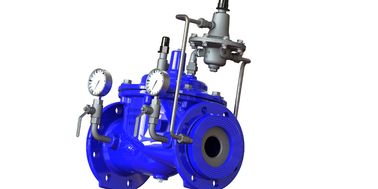

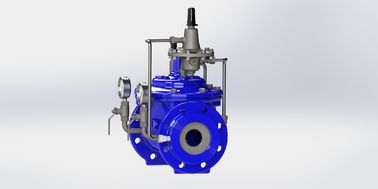

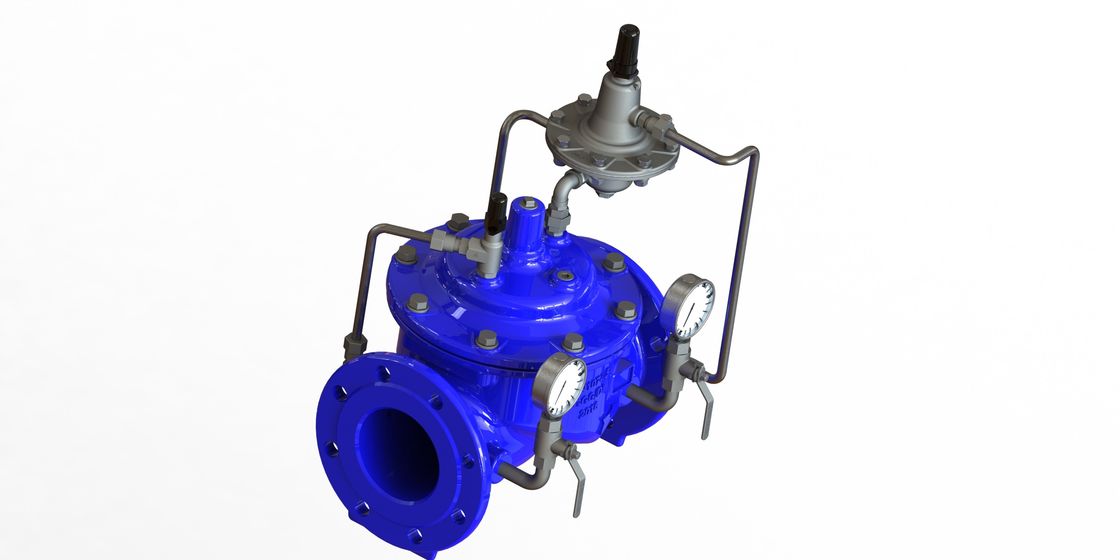

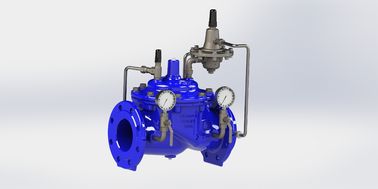

EPDM Seal Flow Control Valve SS304 Pilot EN1074-5 Nylon Reinforcement Diaphragm

EPDM Seal Flow Control Valve SS304 Pilot EN1074-5 Nylon Reinforcement Diaphragm

  • EPDM Seal Flow Control Valve SS304 Pilot EN1074-5 Nylon Reinforcement Diaphragm
  • EPDM Seal Flow Control Valve SS304 Pilot EN1074-5 Nylon Reinforcement Diaphragm
  • EPDM Seal Flow Control Valve SS304 Pilot EN1074-5 Nylon Reinforcement Diaphragm
  • EPDM Seal Flow Control Valve SS304 Pilot EN1074-5 Nylon Reinforcement Diaphragm
EPDM Seal Flow Control Valve SS304 Pilot EN1074-5 Nylon Reinforcement Diaphragm
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: WARS
Model Number: A400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: plywood case
Contact Now
Detailed Product Description
Color: Blue Ral5005 Port Type: Full Port
Pilot Material: SS304 Trim Material: Stainless Steel
Seal Material: EPDM Standard: EN1074-5
Control Pipe: Ductile Iron Material: Stainless Steel
Highlight:

EPDM Seal Flow Control Valve

,

SS304 Pilot Flow Control Valve

,

EN1074-5 Flow Control Valve

Product Description:

The pilot of the Flow Control Valve is made of SS304, a commonly used material in the manufacturing of industrial components due to its high resistance to corrosion and high-temperature tolerance. This ensures that the valve can withstand a broad range of operating conditions without compromising performance.

The Flow Control Valve is designed with a full port type, which allows for unrestricted flow of fluid through the valve. This is crucial in applications where flow rate is critical and any restrictions can cause disruptions in the process.

The seal material of the Flow Control Valve is made of EPDM, a high-performance elastomer that is resistant to wear and tear, as well as extreme temperatures and chemicals. The EPDM seal ensures a tight seal between the valve and the pipe, preventing any leakage that can cause damage to the system.

In summary, the Flow Control Valve is a reliable and durable component that is constructed with high-quality materials for optimal performance. Its ductile iron control pipe, SS304 pilot, full port type, and EPDM seal make it an ideal choice for a wide range of industrial applications where fluid flow regulation is critical.



Features:

  • Product Name: Flow Control Valve
  • Color: Blue Ral5005
  • Material: Stainless Steel
  • Model Code: A400
  • Trim Material: Stainless Steel
  • Temperature Range: 0-80 Degrees Fahrenheit
  • Hydraulically Operated
  • Flow Control Valve
  • Nylon Reinforcement Diaphragm


Technical Parameters:

Port Type Full Port
Temperature Range 0-80 Degrees Fahrenheit
Color Blue Ral5005
Standard EN1074-5
Model Code A400
Seal Material EPDM
Trim Material Stainless Steel
Pilot Material SS304
Maximum Pressure PN10,PN16,PN25
Actuation Manual
Material Ductile Iron
Hydraulically Operated Yes


Applications:

The Nylon Reinforcement Diaphragm in this valve allows it to handle high pressure and flow rates, making it ideal for use in water distribution systems. It is also equipped with a SS304 pilot that ensures accurate control of the flow rate.

The AFC A400 Flow Control Valve has a maximum pressure of PN10, PN16, and PN25, making it suitable for a wide range of applications. Its blue Ral5005 color makes it easy to identify and locate in the system. The control pipe is made of Ductile Iron, which is known for its strength and resistance to corrosion.

This valve can be used in a variety of settings, including residential, commercial, and industrial applications. Its ability to regulate water flow makes it particularly useful in irrigation systems, fire protection systems, and water treatment plants. It can also be used in HVAC systems and swimming pools.

The AFC A400 Flow Control Valve is easy to install and maintain, making it a cost-effective solution for controlling water flow. Its sturdy construction ensures that it can withstand harsh conditions and resist wear and tear. It is also designed to be energy-efficient, making it an environmentally friendly option.

In summary, the AFC A400 Flow Control Valve is a versatile product that can be used in a variety of applications. Its high-quality construction, Nylon Reinforcement Diaphragm, SS304 pilot, and maximum pressure range make it an ideal choice for regulating water flow. Whether you are a homeowner, business owner, or water treatment facility manager, this valve is a reliable and efficient solution.



Support and Services:

The Flow Control Valve product technical support and services include:

- Assistance with installation, operation, and maintenance

- Troubleshooting and problem-solving

- Repair and replacement services

- Product training and education

- Technical documentation and manuals

- Customization and engineering support

- On-site field service and support
