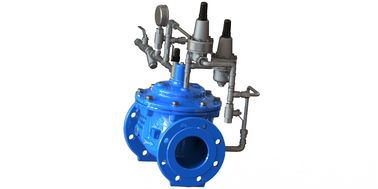

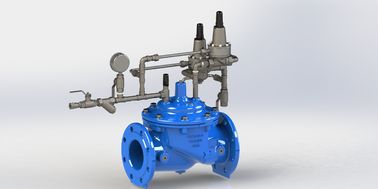

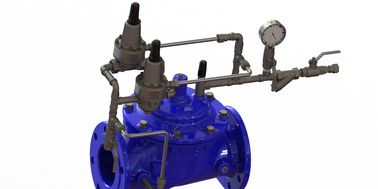

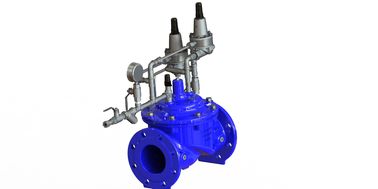

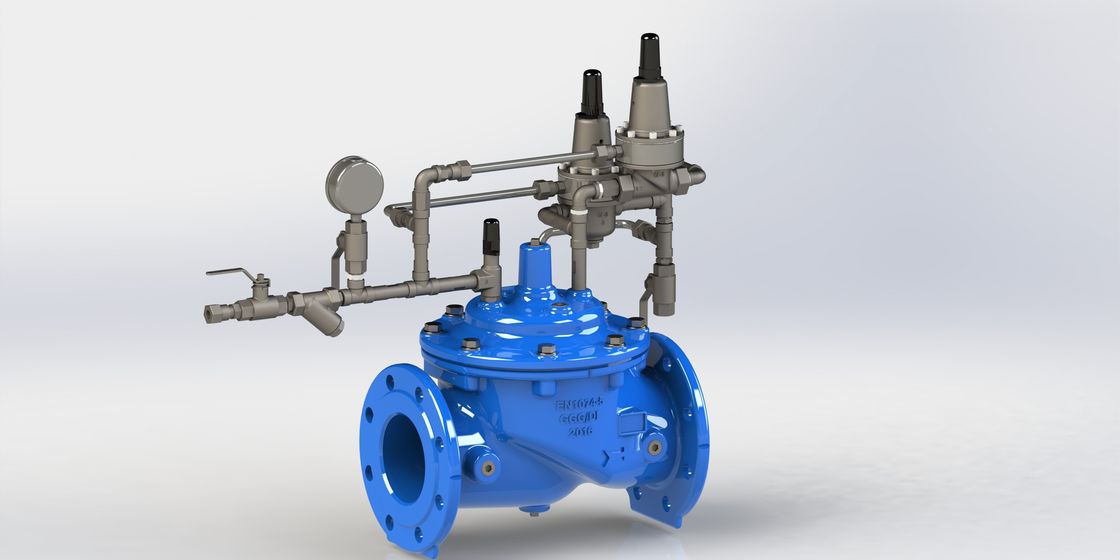

Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer

Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer

  • Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer
  • Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer
  • Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer
  • Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer
Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: ISO 9001
Model Number: A2A5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Color: Blue
Diaphragm: Nylon Reinforcement With EPDM Rubber: EPDM
High Light:

SS304 Pilot surge anticipation valve

,

Anti Water Hammer surge anticipation valve

,

SS304 Pilot surge anticipator valve





Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer​ ​





Description:



    A2A5 is a surge anticipation valve and adjusted to eliminate hazardous pressure surges typical of water hammer conditions. A water hammer is caused by an abrupt shutoff of a pump or rapid closure of a main valve, causing a fast propagation of low-pressure front, followed by an extremely high-pressure back-wave. A series of pressure waves, each one composed of alternating low and high pressure is created within a few seconds. A2A5 is a piloted hydraulic valve activated by line pressure. The valve has two pilots, for high and low pressure. Under normal conditions the A2A5 is closed. It opens when the line pressure drops below a preset pressure, in anticipation to the following surge, and remains open until the fluctuations subside.



Features:



• No slam operation
• Simple and reliable design
• Easy installation and maintenance
• Low Resistance and high flow capacity
• Protection for sewage as well as clean water pumping systems



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer 0Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer 1



Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer 2



DN400-DN800



Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer 3Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer 4

Nylon Reinforcement Diaphragm Surge Anticipating Valve Anti Water Hammer 5
