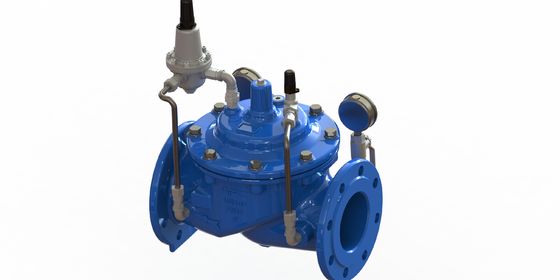

Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron

Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron

  • Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron
  • Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron
  • Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron
  • Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron
Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN1074-5
Model Number: A200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based On order
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Tubing: SS304 Coating: EPOXY
Diaphragm: Nylon Reinforcement With EPDM Rubber: EPDM
High Light:

SS304 Adjustable Pressure Reducing Valve

,

Epoxy Coated Pressure Reducing Valve

,

Nylon Reinforcement Adjustable Pressure Reducing Valve



Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron Valve Body







A200 is a pressure reducing valve which consists of

1. Main valve

2. Reducing pilot-P200

3. Reduce a higher inlet pressure to a stable outlet pressure

4. Regardless of variation of inlet pressure or variation of outlet flow.

6. When downstream pressure exceeds setting, pilot and main valve will close

7. V-port as an accessory. Reduced bore as an option.



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron 0

Parts List
No. Description Material Standard
1 Body Ductile Iron GJS500-7
2 Seat Stainless Steel AISI304/316
3 O-ring Rubber NBR
4 O-ring Rubber NBR
5 Bolt Stainless Steel A2/A4
6 Washer Stainless Steel A2/A4
7 Bonnet Ductile Iron GJS500-7
8 Bush Bronze C61900
9 Spring Stainless Steel AISI304/316
10 Caulking Nut Stainless Steel A4
11 Diaphragm Nylon Reinforced Rubber EPDM+Nylon Fabric
12 Fixing Holder Ductile Iron GJS500-7
13 Disc Holder Ductile Iron GJS500-7
14 Seal Rubber EPDM
15 Seat Retainer Stainless Steel AISI304/316
16 Stem Stainless Steel AISI304/316
17 Plug Stainless Steel AISI304/316
18 Screw Stainless Steel A2/A4
19 Plug Stainless Steel A2/A4
20 Washer Stainless Steel A2/A4



Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron 1



DN400-DN800



Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron 2

Parts List
No. Description Material Standard
1 Body Ductile Iron GJS500-7
2 Seat Stainless Steel AISI304/316
3 Screw Stainless Steel A2/A4
4 Screw Stainless Steel A2/A4
5 Screw Stainless Steel A2/A4
6 Spring Stainless Steel AISI304/316
7 Bonnet Ductile Iron GJS500-7
8 Bush Bronze C61900
9 O-ring Rubber NBR
10 Fix Washer Bronze C61900
11 Diaphragm Nylon Reinforced Rubber EPDM+Nylon Fabric
12 Eye Bolts Carbon Steel 1040
13 Fixing Holder Ductile Iron GJS500-7
14 Disc Holder Ductile Iron GJS500-7
15 Seal Rubber EPDM
16 Seat Retainer Ductile Iron GJS500-7
17 Stem Stainless Steel AISI304/316
18 Plug Stainless Steel AISI304/316
19 O-ring Rubber NBR
20 Cap Ductile Iron GJS500-7
21 Plug Stainless Steel AISI304/316
22 Screw Stainless Steel A2/A4
23 O-ring Rubber NBR
24 Screw Stainless Steel A2/A4

Epoxy Coated Adjustable Pressure Reducing Valve Ductile Iron 3
