Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC OEM |
| Certification: | EN1074-4 AWWA C504 |
| Model Number: | KARA |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | Based on order |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 days for two containers |
| Product Name: | Anti Water Hammer Combination Air Release Valve Stainless Steel 304 Float | Model Code: | KARA |
|---|---|---|---|
| Material: | Ductile Iron GJS500-7 | Float: | Stainless Steel 304 |
| Color: | RAL 5010 | Rubber: | EPDM |
| Flow Area: | Full Flow Area | Connection: | Flange |
| High Light: | Combination Air Valve Anti Shock,Combination Air Release Valve SS304 Float,SS 304 Float Combination Air Valve |
||

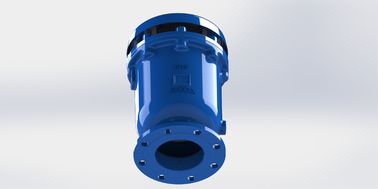

Anti Water Hammer Combination Air Release Valve Stainless Steel 304 Float
Features:
Anti-shock combination air release valve can help to prevent water hammer. It decreased the water velocity and restrict the velocity of air flow. This type of valve is generally used in long water transmission pipeline where may occur a water hammer. If the air exhaust out the valve too quick, the water will comes in very fast, too. The water will prevent the float go up which caused the valve leaking.
Size Selection Table:
| Water flow rate range Max CMH |
760 | 1360 | 4160 | 8500 | 19100 | 33400 | 76300 |
| Main pipeline size mm |
80-300 | 200-400 | 400-700 | 750-1000 | 1050-1500 | 1500-2000 | 2100-3000 |
| Inlet size of KARX mm |
25 | 50 | 80 | 100 | 150 | 200 | 300 |
| bore of outlet mm |
50 | 75 | 95 | 130 | 170 | 230 | 330 |
| small orifice size mm |
1.6 | 1.6 | 2 | 2.5 | 3 | 4 |
4
|
Material List:
KARX ( Flange Type DN50-DN300)
Dimension:
KARS ( Thread Type DN25-DN50)
KARX ( Flange Type DN50-DN300)
