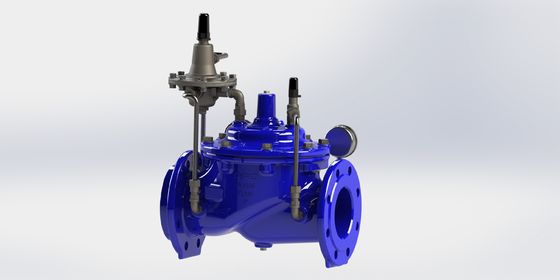

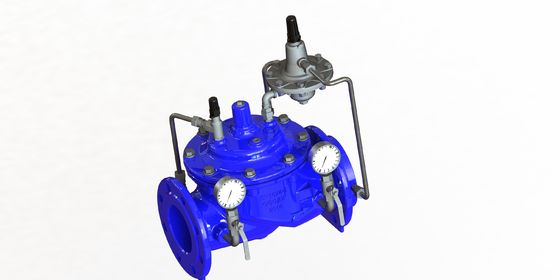

Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated

Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated

  • Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated
  • Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated
  • Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated
  • Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated
Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: EN1074-5
Model Number: A400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: PRICE
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: based on order
Contact Now
Detailed Product Description
Product Name: Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated Model Code: A400,R400
Material: Ductile Iron - GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Diaphragm: Nylon Reinforcement With EPDM
Color: Blue Ral5010 Control Pipe: Stainless Steel 304
High Light:

SS304 Pilot Flow Restrictor VaHydraulic lve

,

SS304 Pilot Hydraulic Flow Restrictor Valve

,

Flow Restrictor Valve Hydraulically Operated





Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated







    A400 Flow Rate Control Valve is activated by line pressure and controlled by a pilot valve. The pilot includes a springloaded membrane. An orifice plate is installed either downstream or upstream of the A400. The orifice size is prepared in advance to suit the specified required flow rate.


    The head loss across the orifice is proportional to flow rate through the A400 valve. This head loss is transferred to the opposite sides of the pilot's membrane, which moves upward or downward accordingly. These movements open or close the inner ports of the pilot valve, directing the line pressure to control the A400.



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated 0Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated 1



Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated 2



DN400-DN800



Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated 3Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated 4

Stainless Steel 304 Pilot Control Flow Restrictor Valve Hydraulically Operated 5
