Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC |
| Certification: | EN1074-5 |
| Model Number: | A500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | 15-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Product Name: | EN1074- FBE Coated Pressure Sustaining Valve With SS304 Pilot Hydraulically Operated | Model Code: | A500 R500 |
|---|---|---|---|
| Material: | Ductile Iron - GJS500-7 | Pilot Material: | SS304 |
| Standard: | EN1074-5 | Coating: | EPOXY |
| Diaphragm: | Nylon Reinforcement With EPDM | Rubber: | EPDM |
| High Light: | EN1074 Pressure Sustaining Valve,FBE Coated Pressure Control Valve,Nylon Reinforcement Pressure Control Valve |
||

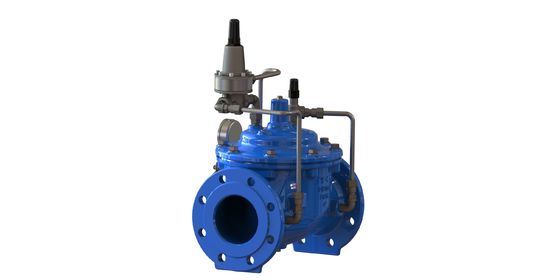

EN1074- FBE Coated Pressure Sustaining Valve With SS304 Pilot Hydraulically Operated
Description:
A500 is a hydraulically operated, diaphragm actuated control valve that can fulfill two separate functions. When installed in-line, it keeps minimum pre-set, upstream pressure regardless of fluctuating flow or varying downstream pressure. When working as a circulation valve, it relieves excessive line pressure when above maximum pre-set.
Features:
• Accurate Pressure Control
• Optional Check Feature
• Fast Opening to Maintain Line Pressure
• Completely Automatic Operation
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Materials And Dimension
DN50-DN350
DN400-DN800
