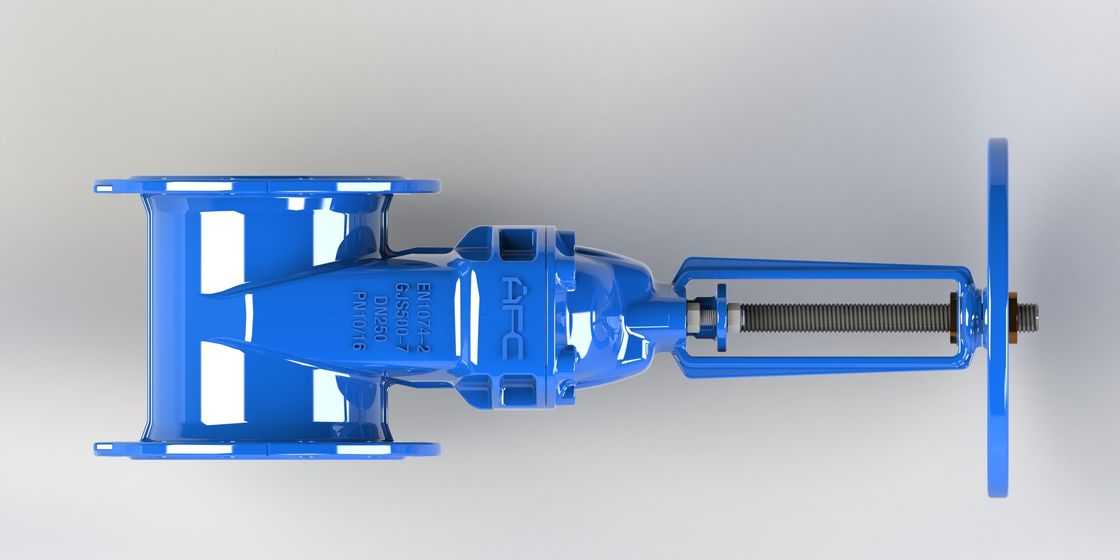

Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type

Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type

  • Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type
  • Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type
  • Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type
  • Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type
Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: WRAS, ISO9001
Model Number: RAHX, RBBX, RBHX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable USD RMB
Packaging Details: Plywood cases
Delivery Time: 60 days for 2 container
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Ductile Iron Gate Valve Soft Sealing Rising Stem Type Material: GJS500-7, GGG/DI
Coating: FBE With WRAS Approved Stem: SS420 SS431
HW: Carbon Steel Color: Blue RAL5010 , Red EY3000
Pressure Rating: PN10 PN16
High Light:

Ductile Iron Gate Valve FBE Coating

,

Soft Sealing Gate Valve FBE Coating

,

Blue RAL5010 Soft Sealing Gate Valve





Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type





Description:



1. Manufacturing standard meets BS EN 1074, BS 5163, BS EN 1171.

2.Face to Face Distance meets the standard: BS EN558-1.

3. High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.



Service Field:



Water supply, sewage, fire fighting, irrigation, water circulation, heat, cooling system.



Feature:



1. Body, Yoke and Bonnet are made of high grade GSJ500-7.

2. Wedge is fully vulcanized by EPDM.

3. Rolled Stem thread

4. HW can be Carbon Steel or Ductile Iron.

5. Long service life.

6. Nylon Guiding can help to reduce the torque.



Quality System:



IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing



Technical Spec:



Size DN50-DN300
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1



Dimension:

Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type 0Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type 1



Material:

Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type 2Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type 3

Resilient Ductile Iron Gate Valve Soft Sealing Rising Stem Type 4
