40 Degree Ductile Iron Body Wafer Swing Check Valve For Wastewater

Product Details:

Place of Origin:	China
Brand Name:	AFC,OEM
Certification:	CE, NSF61/372
Model Number:	RDCV

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Price negotiable USD RMB
Packaging Details:	Plywood cases
Delivery Time:	45-60 days
Payment Terms:	L/C, T/T
Supply Ability:	Based on order

Contact Now

Detailed Product Description

Product Name:	40 Degree Suitable For Wastewater Ductile Iron Body Wafer Swing Check Valve	Mode Code:	RDCV
Material:	GJS500-7	Standard:	EN12233
Coating:	EPOXY	Disc:	EPDM
Incline Angle:	40 Degree	Media:	Water And Waste Water
High Light:	40 Degree Wafer Swing Check Valve , Ductile Iron Wafer Swing Check Valve , Wastewater Swing Flex Check Valve

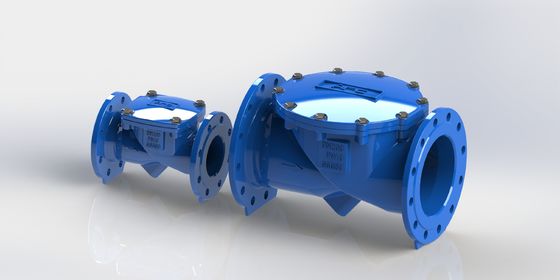

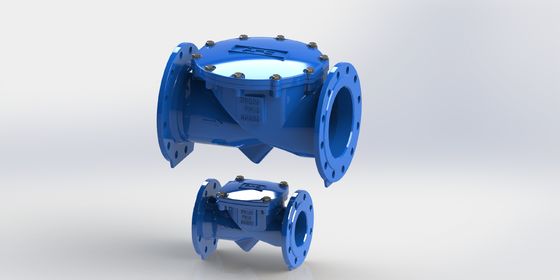

40 Degree Suitable For Wastewater Ductile Iron Body Wafer Swing Check Valve

Description:

RDCV is rubber disc check valve fully encapsulated resilient disc seat, double flange swing check valve for reliable reverse flow prevention. It's OK for both clean water/sewage water applications. It is a 40 degree angle declined seat which can help close quickly and reduce the water hammer and slamming.

Features:

Simple design disc w/o movable components

More than 50,000 times cycles operations

No rusting-long service

40 degree incline angle-lower stroke and reduce water hammer and slamming.

Nearlyhalf stroke of traditional check valve.

Keep 100% full flow area that can reduce head loss.

Technical Data:

Size	DN50-DN600
Working Temperature	- 10C- 80C
Flange	AISI B16.1 Or PN16
Flow Media	Water and Waste Water

General Applications:

For general water supply, fire fighting,HVAC/ cooling & sewage system.

Quality System
IQC	Check call incoming parts
IPQC	Check the production process is qualified
FQC	All valves are pressure tested
OQC	Check the valve ourlook and packing

Material:

40 Degree Ductile Iron Body Wafer Swing Check Valve For Wastewater 0

Dimension
DN	Model No	L	D1		D2		n-φd		C
DN	Model No	L	PN10	PN16	PN10	PN16	PN10	PN16	C
50	RDCV-0050	203	165		125		4-φ19		19
65	RDCV-0065	216	185		145		4-φ19		19
80	RDCV-0080	241	200		160		8-φ19		19
100	RDCV-0100	292	220		180		8-φ19		19
125	RDCV-0125	30	250		210		8-φ19		19
150	RDCV-0150	356	285		240		8-φ23		19
200	RDCV-0200	495	340		295		8-φ23	12-φ23	20
250	RDCV-0250	622	395	405	350	355	12-φ23	12-φ28	22
300	RDCV-0300	698	445	460	400	400	12-φ23	12-φ28	24.5
350	RDCV-0350	787	505	520	460	460	16-φ23	16-φ28	24.5
400	RDCV-0400	914	565	580	515	515	16-φ28	16-φ31	24.5
*450	RDCV-0450	914	615	40	565	565	20-φ28	20-φ31	25.5
500	RDCV-0500	978	670	715	620	620	20-φ28	20-φ34	26.5
*600	RDCV-0600	1067	780	840	725	725	20-φ31	20-φ37	30
*DN450 use the same F/F dimension of DN400

40 Degree Ductile Iron Body Wafer Swing Check Valve For Wastewater 1
