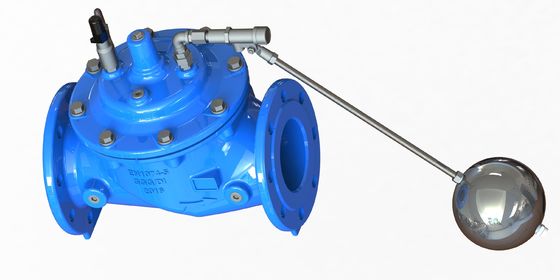

Remote Float Control Valve With Nylon Reinforcement Diaphragm

Remote Float Control Valve With Nylon Reinforcement Diaphragm

  • Remote Float Control Valve With Nylon Reinforcement Diaphragm
  • Remote Float Control Valve With Nylon Reinforcement Diaphragm
  • Remote Float Control Valve With Nylon Reinforcement Diaphragm
  • Remote Float Control Valve With Nylon Reinforcement Diaphragm
Remote Float Control Valve With Nylon Reinforcement Diaphragm
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: EN1074-5
Model Number: A100, R100, A10B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Nylon Reinfocement Diaphragm Remote Float Control Valve Model Code: A100, R100, A10B
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Function: Modulating
Coating: EPOXY Diaphragm: Nylon Reinfocement With EPDM
High Light:

Nylon Remote Float Control Valve

,

EPOXY Coating Remote Float Valve

,

Nylon Reinforcement Remote Float Valve



Nylon Reinfocement Diaphragm Remote Float Control Valve

Description:



A100 is a remote float control valve which consists of

1. Main valve

2. Float control pilot-P100

3. Installed the complete valve set on the top of tank or main valve and pilot separate- remote control

4. On - off control

5. When water level decrease the float drop , main valve open, water start to flow in

6. When float reaches high water level, close the main valve





A10B is a bi-level float control valve which consists of

1. Main valve

2. Bi-level float control pilot-P10B

3. Installed full valve on the top of tank or main valve and pilot separate- remote control

4. On - off control

5. Control water level in the tank

6. Valve open fully when float reaches the pre-set low water level-lower stop

7. Close when the float reaches the upper stop
