Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
Place of Origin: | China |
Brand Name: | AFC, OEM |
Certification: | WRAS, N1074-2, ISO 9001 |
Model Number: | GBCX, GBHX, GBBX |
Minimum Order Quantity: | 1 |
---|---|
Price: | Price negotiable |
Packaging Details: | Plywood Packing |
Delivery Time: | 60 days for 2 containers |
Payment Terms: | L/C, T/T |
Supply Ability: | Based on order |
Product Name: | Soft Sealing Resilient Seated Gate Valve FBE Coating Handwheel Or Top Cap Available | Model Code: | GBCX, GBHX, GBBX |
---|---|---|---|
Material: | Ductile Iron | Stem: | SS420, SS413, SS304, SS316 |
Stem Nut: | Brass, Bronze | Coating: | WRAS Powder |
Operator: | Handwheel, Cap | Wedge: | DI With EPDM |
Highlight: | Soft Sealing Resilient Seated Gate Valve,FBE Coating Resilient Seated Valve,FBE Resilient Seated Gate Valve |

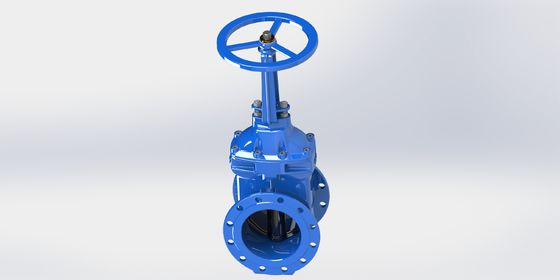

Soft Sealing Resilient Seated Gate Valve FBE Coating Handwheel Or Top Cap Available
Features:
1. Comply with BS5163, EN1074-1 and EN1074-2 standard.
2. Without deformation when 5 times of over torque operation.
3. Overcome vaccum when pump stops working. No sucking dirt or sand from outside of the valve.
4. Low Torque with advanced design.
5. Online repair by 5 pcs of o-rings for stem seal.
6. AWWA flange is avaliable.
Production Process:
1. Sandblasitng - To clean to castingto have a better adhesion while coating
2. Coating - By electrical spray gun or fluidize bed - WRAS, NSF approved
3. Assembling - By experienced workers
4. Testing - 100% tested with sell and seat test
5. Packing - Plywood crates.
Model Code Explaination:
GBHX :
G: Gate valve
B: British Standard, A: AWWA Standard, 4: DIN standard, S: Australia Standard
H: Handwheel operated, C: Cap, B: Bare Head
X: Presreved
Valve Sizes:
DN | L | H | H1 | ΦD PN16 | Φk PN16 | n-φd PN16 | C PN16 | ΦF |
450 | 432 | 1105 | 548 | 640 | 585 | 20-φ31 | 30 | 500 |
500 | 457 | 1235 | 609 | 715 | 650 | 20-φ34 | 31.5 | 600 |
600 | 508 | 1395 | 720 | 840 | 770 | 20-φ37 | 36 | 600 |
Material :
Valve Body | DI GJS500-7 |
Valve Bonnet | DI GJS500-7 |
Valve Gland | DI GJS500-7 |
Wedge | DI GJS500-7 with fully vulcanized EPDM |
Stem | SS420/SS431 |
Stem nut | Brass/Bronze |
O-ring | NBR |
Contact Person: Mr. Matt Liang
Tel: +86 15195674203
Fax: 86-512-6673-2928
