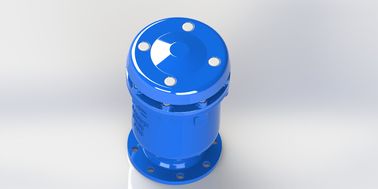

Anti Water Hammer Combination Air Release Valve SS 304 Float

Anti Water Hammer Combination Air Release Valve SS 304 Float

  • Anti Water Hammer Combination Air Release Valve SS 304 Float
  • Anti Water Hammer Combination Air Release Valve SS 304 Float
  • Anti Water Hammer Combination Air Release Valve SS 304 Float
  • Anti Water Hammer Combination Air Release Valve SS 304 Float
Anti Water Hammer Combination Air Release Valve SS 304 Float
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN1074-4 AWWA C504
Model Number: KARA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 60 days for two containers
Contact Now
Detailed Product Description
Product Name: Anti Water Hammer Combination Air Release Valve Stainless Steel 304 Float Model Code: KARA
Material: Ductile Iron GJS500-7 Float: Stainless Steel 304
Color: RAL 5010 Rubber: EPDM
Flow Area: Full Flow Area Connection: Flange
High Light:

Anti Water Hammer Combination Air Valve

,

SS304 Float Combination Air Valve

,

Flange Connection Combination Air Valve





Anti Water Hammer Combination Air Release Valve Stainless Steel 304 Float



Features:



Anti-shock combination air release valve can help to prevent water hammer. It decreased the water velocity and restrict the velocity of air flow. This type of valve is generally used in long water transmission pipeline where may occur a water hammer. If the air exhaust out the valve too quick, the water will comes in very fast, too. The water will prevent the float go up which caused the valve leaking.





Size Selection Table:



Water flow rate range
Max CMH
760 1360 4160 8500 19100 33400 76300
Main pipeline size
mm
80-300 200-400 400-700 750-1000 1050-1500 1500-2000 2100-3000
Inlet size of KARX
mm
25 50 80 100 150 200 300
bore of outlet
mm
50 75 95 130 170 230 330
small orifice size
mm
1.6 1.6 2 2.5 3 4
4





Material List:



KARX ( Flange Type DN50-DN300)



Anti Water Hammer Combination Air Release Valve SS 304 Float 0Anti Water Hammer Combination Air Release Valve SS 304 Float 1







Dimension:



KARS ( Thread Type DN25-DN50)



Anti Water Hammer Combination Air Release Valve SS 304 Float 2

























































































































KARX ( Flange Type DN50-DN300)



Anti Water Hammer Combination Air Release Valve SS 304 Float 3
