Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill

Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill

  • Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill
  • Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill
  • Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill
  • Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill
Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: ISO9001-2015
Model Number: SKAR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description

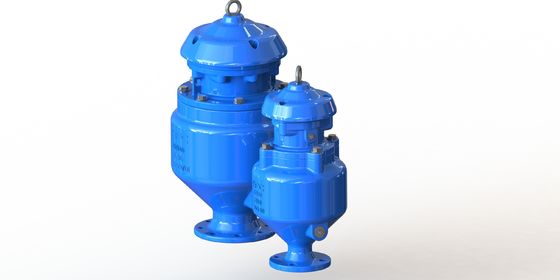

Product Name: Sewage Air Release Valve With Anti Shock Function Prevent Water Hammer Without Spill Model Code: SKAR
Material: Ductile Iron GJS500-7 Internal Parts: SS316
Coating: Fushion Bonded Epoxy Flow Area: Full Flow Area
Color: RAL5010 Specialty: Spill Free
High Light:

Sewage Air Release Valve Without Spill

,

Sewage Air Release Valve Anti Shock

,

Spill Free sewage air valves

Sewage Air Release Valve With Anti Shock Function Prevent Water Hammer Without Spill



Description:



    In waste water system , additional gas will accumulate because of all kinds of gas or air to ventilate the waste water. In order to minimize the headloss, SKAR - sewage air release valve is very important to be installed for venting the air in pipeline. Air release takes place at high points, on long ascending and descending pipe sections, downstream of pumps, upstream of restrictions.

​​

   Sewage air release valve with anti-shock device can help to prevent water hammer so that can minimize headloss. It decreased the water velocity and restrict the velocity of air flow. This type of valve is generally used in long sewage water transmission pipeline where may have water hammer. If the air exhaust out the valve too quick, the waste water will comes in very fast, too. The water will prevent the float go up which caused the valve leaking.



Function:



Combination kinetic air release valve provide 3 functions:



1. Large air release -

Anti shock device to prevent fast flow and water hammer. Decrease the air exhausting velocity to prevent water hammer. Slow down water and air out with multi holes on top sealing arc



2. Small air release

When operation the air produced by the pipeline is accumulated in the upper part. Little by little it is compressed and its volume increases, pushing the liquid level downwards and allowing the air release through the small nozzle.



3. Large air intake during draining of the pipeline.

During pipeline draining, or pipe bursts, it is necessary to bring in as much air as the quantity of outflowing liquid. This is to avoid bad pressure and strong damages to the pipeline and the total system





Features:



Without spilling.

.  Wider middle body, shorter height.
Slow down the flow velocity, keep sewage in the body.

Drain boss at the top & bottom for cleaning.

.  Fully fusion epoxy coated inside and outside of valve body for long term services.
• Most parts of valves can be recycled.
• Float with a rubber sealing can be as an absorber to prohibit water hammer direct acting on the sealing arc and seat impact.
• All internal parts are 316SS without rusting.



Service Fields:


For sewage water system.


Technical Data:


Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.
Please consult factory for PN25 and antishock device whenever there is waterhammer issue.



Quick Selection Table
Water Flow Rate
CMH
1360 4160 8500 19100 33400
Main pipe size
MM
80-400 400-700 750-1000 1050-1500 1500-2000
Size of SKAR
MM
50 80 100 150 200



Material:

Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill 0



No. Part Name Material Standard
1 Body Ductile Iron EN GJS500-7
2 Float Stainless Steel AISI 304/316L
3 Middle Part Ductile Iron EN GJS500-7
4 O-ring Rubber NBR
5 Hex Bolt Stainless Steel AISI304
6 Washer Stainless Steel AISI304
7 Bonnet Ductile Iron EN GJS500-7
8 Cover Ductile Iron EN GJS500-7
9 Washer Stainless Steel Commercial/AISI304/316
10 Hex Bolt Stainless Steel Commercial/AISI304/316
11 Eyebolt Carbon Steel Commercial
12 Pillar Aluminium Commercial
13 O-ring Rubber NBR
14 Seat Rubber NBR
15 Sealing Arc Stainless Steel AISI304/316L
16 Orifice Seat Rubber NBR
17 Stem Stainless Steel AISI304/316L
18 Plug-option Stainless Steel AISI304/316L
19 Small orifice Stainless Steel AISI304/316L





Dimension:

Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill 1

Sewage Air Release Valve Anti Shock Prevent Water Hammer Without Spill 2
