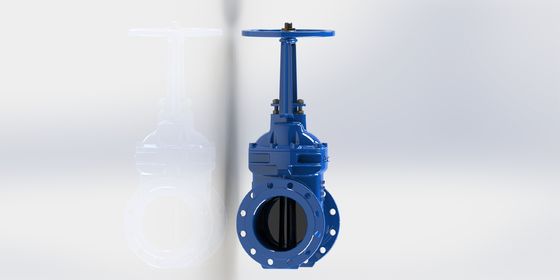

Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap

Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap

  • Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap
  • Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap
  • Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap
  • Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap
Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: WRAS, N1074-2, ISO 9001
Model Number: GBCX, GBHX, GBBX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: price
Packaging Details: Plywood Packing
Delivery Time: 60 days for 2 containers
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap Model Code: GBCX, GBHX, GBBX
Material: Ductile Iron Stem: SS420, SS413, SS304, SS316
Stem Nut: Brass, Bronze Coating: WRAS Powder
Operator: Handwheel, Cap Wedge: DI With EPDM
High Light:

Resilient Seated Gate Valve FBE Coated

,

WRAS Powder Resilient Seated Gate Valve

,

Water Gate Valve FBE Coated



Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap





Features:



1. Meet BS5163, EN1074-1 and EN1074-2 standard.

2. Without deformation when 5 times of over torque operation.

3. Overcome vaccum when water stops. No sucking dirt or sand from outside of the valve.

4. Low Torque with newly advanced design.

5. Online repair by 5 pcs of o-rings for stem seal.

6. AWWA flange is avaliable.





Production Process:



1. Sandblasitng - To clean to castingto have a better adhesion while coating

2. Coating - By electrical spray gun or fluidize bed - WRAS, NSF approved

3. Assembling - By experienced workers

4. Testing - 100% tested with sell and seat test

5. Packing - Plywood crates.







Model Code:



GBHX :

G: Gate valve

B: British Standard, A: AWWA Standard, 4: DIN standard, S: Australia Standard

H: Handwheel operated, C: Cap, B: Bare Head

X: Presreved



Valve Sizes:

Resilient Seated Gate Valve FBE Coated Flange Type With Handwheel Or Top Cap 0

DN L H H1 ΦD PN16 Φk PN16 n-φd PN16 C PN16 ΦF
450 432 1105 548 640 585 20-φ31 30 500
500 457 1235 609 715 650 20-φ34 31.5 600
600 508 1395 720 840 770 20-φ37 36 600



Material :

Valve Body DI GJS500-7
Valve Bonnet DI GJS500-7
Valve Gland DI GJS500-7
Wedge DI GJS500-7 with fully vulcanized EPDM
Stem SS420/SS431
Stem nut Brass/Bronze
O-ring NBR
