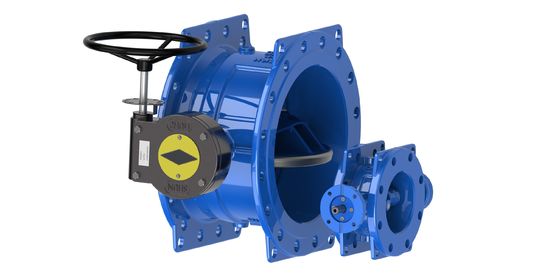

EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type

EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type

  • EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type
  • EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type
  • EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type
  • EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type
EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN593
Model Number: FBGD, FBBD, FBED,FBPD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable USD RMB
Packaging Details: Plywood cases and pallets
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 2 containers in 60 days
Contact Now
Detailed Product Description
Product Name: EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type Model Code: FBGD FBBD
Color: Blue RAL 5010 Material: Ductile Iron GSJ500-7
Disc Seat: 316L Body Seat: EPDM
Pressure Rating: 150 PSI Standard: AWWA C504
Highlight:

EPDM Seal Ductile Iron Butterfly Valve

,

Ductile Iron Butterfly Valve 150 PSI

,

EPDM Seal Double Eccentric Butterfly Valve

EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type




Features:


Designed with Arch shape and stronger ribs on back side, size DN350-1200MM



Double eccentric design, reduce rubber wearing



Reduce the compression of rubber seat



Increase the service life cycle of rubber



EPDM seal for drinking water



More than 5,000 cycle test, for DN600 and up



Flow thru disc-energy saving, lower pumping cost



Reduce head loss and minimize water hammer



Seal in both direction. Disc and stem are strong without many deformation



Online repairing by EPOXY. The special technology can help user to repair the Double Eccentric Flange Butterfly Valve without taking the valve out of the pipeline. The user only needs to repair it from the exterior of the butterfly valve without going into the pipeline. Please consult the factory and we will show you how to repair the BV when the rubber seal is damaged.


Operation Torque:



Bare Head Torque (Nm)
Inch Nm
4 85
6 128
8 210
10 250
12 372
14 760
16 1160
18 1280
20 1680
24 2500
28 2592
32 4428
36 5300
40 7245
48 13320



Materials:
 EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 0EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 1



EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 2EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 3



Dimension:



EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 4

EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 5



EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 6

EPDM Seal Ductile Iron Butterfly Valve 150 PSI Pressure Rating Flanged Type 7
