|Place of Origin:||China|
|Brand Name:||AFC, OEM|
|Certification:||WRAS, CE, ISO9001|
|Model Number:||GBCX, GBHX|
|Minimum Order Quantity:||1|
|Price:||USD or RMB|
|Packaging Details:||Plywood cases packing|
|Delivery Time:||45-60 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||60 days for two containers|
|Material:||Ductile Iron GJS500-7||Color:||Blue RAL5010, Red EY3000|
|Nut:||Brass, Bronze||Operator:||HW, Cap|
EN1074-2 Soft Sealing Gate Valve,
Abrasion Resistance Soft Sealing Gate Valve,
Resilient Seated Gate Valve Abrasion Resistance
Abrasion Resistance Resilient Seated Gate Valve , Soft Sealing Gate Valve

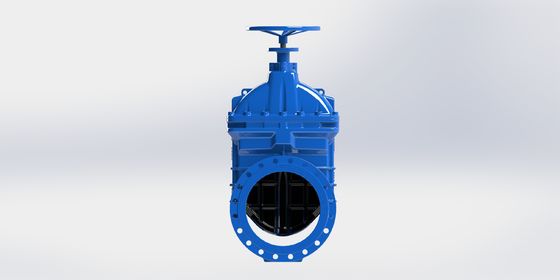

Resilient seated gate valve is a soft seated wedge with fully coated with rubber. The valve is designed by 3D software solidworks for light operating and weight. The interior and exterior FBE coating provides no corrosion. A good resilient memory & long service life by rubber wedge.
Newly advanced design, less operation torgue & abrasion resistance.
• Body & bonnet are made of high grade ductile Iron GJS500-7
• Disc is designed with an abrasion resistant nylon guide which can help less opening or closing torgue and smooth during operation.
1. EPDM fully vulcanized
2. WRAS approved
• Forged stem provide stronger stem operation and less moving parts.
1. Stainless Steel 420 / Stainless Steel 431 / Stainless 304/ Stainless Steel 316 are available.
2. Platform provide better strength
• Ductile Iron inside the wedge is covered by WRAS Approved EPDM which is suitalbe for drinking water.
• High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.
• The 4 O-ring stem seals are designed to prevent stem leakage. and provide replacement of the O-ring without disassambling of valve from mainline pipes.
• Epoxy powder is coated inside & outside.
• Manufacturing standard meets BS EN 1074-1, EN1074-2, BS 5163, BS EN 1171.
• F/F (Face to Face) meets the following standard: BS EN558-1.
• Bolts are protected by silicon glue.
|IQC||Check call incoming parts|
|IPQC||Check the production process is qualified|
|FQC||All valves are pressure tested|
|OQC||Check the valve ourlook and packing|
Size Range: DN50~DN600mm
Pressure Rating: 1.0Mpa; 1.6Mpa; (2.5MPa Up to DN300)
Working Temperature:-10℃- 80℃
Flow Media: Water, Sewage
End Connection: PN 10/ 16, PN25 is available up to DN300
