Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
Place of Origin: | China |
Brand Name: | AFC,OEM |
Certification: | ISO 9001 |
Model Number: | A2A5 R2R5 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Price Negotiable |
Packaging Details: | Plywood cases |
Delivery Time: | 15-60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | Based on order |
Product Name: | Nylon Reinforced Diaphragm Anti Water Hammer Surge Anticipating Valve | Model Code: | A2A5 R2R5 |
---|---|---|---|
Material: | Ductile Iron GJS500-7 | Pilot Material: | SS304 |
Standard: | EN1074-5 | Color: | Blue |
Diaphragm: | Nylon Reinforcement With EPDM | Rubber: | EPDM |
Pressure Rate: | PN10, PN16, PN25 | ||
Highlight: | Anti Water Hammer Surge Anticipating Valve,Stainless Steel Pilots Surge Anticipating Valve,No Slam Surge Anticipating Valve |

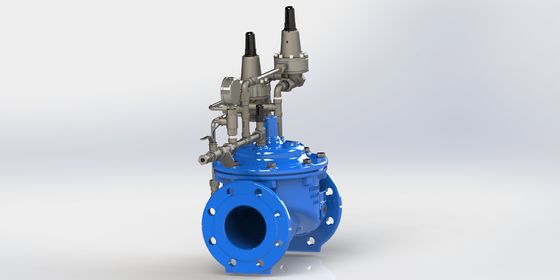

Anti Water Hammer Function Stainless Steel Pilots Surge Anticipating Valve
Anti Water Hammer Stainless Steel Pilots Surge Anticipating Valve
Description:
A2A5 is a surge anticipation valve and could be adjusted to eliminate hazardous pressure surges typical of water hammer. A water hammer is caused by an abrupt shut off of a pump or quick closure of a main valve, causing a fast propagation of low-pressure front, followed by an extremely high-pressure back-wave. A series of pressure waves, each one composed of alternating low and high pressure is created within a few seconds. A2A5 is a piloted hydraulic valve activated by line pressure. The valve has two pilots, for high and low pressure. Under normal conditions the A2A5 is closed. The valve opens when the line pressure drops below a preset pressure, in anticipation to the following surge, and remains open until the fluctuations subside.
Features:
• No slam operation
• Simple and reliable design
• Easy installation and maintenance
• Low Resistance and high flow capacity
• Protection for sewage as well as clean water pumping systems
Service Fields:
For water system, irrigation system.
Technical Data:
Size | DN50-DN800 |
Working Temperature | - 10C- 80C |
Flange | AISI B16.1 Or PN16 |
Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
No. | Description | Material | Standard |
1 | Body | Ductile Iron | GJS500-7 |
2 | Seat | Stainless Steel | AISI304/316 |
3 | O-ring | Rubber | NBR |
4 | O-ring | Rubber | NBR |
5 | Bolt | Stainless Steel | A2/A4 |
6 | Washer | Stainless Steel | A2/A4 |
7 | Bonnet | Ductile Iron | GJS500-7 |
8 | Bush | Bronze | C61900 |
9 | Spring | Stainless Steel | AISI304/316 |
10 | Caulking Nut | Stainless Steel | A4 |
11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
12 | Fixing holder | Ductile Iron | GJS500-7 |
13 | Disc Holder | Ductile Iron | GJS500-7 |
14 | Seal | Rubber | EPDM |
15 | Seat Retainer | Stainless Steel | AISI304/316 |
16 | Stem | Stainless Steel | AISI304/316 |
17 | Plug | Stainless Steel | AISI304/316 |
18 | Screw | Stainless Steel | A2/A4 |
19 | Plug | Stainless Steel | A2/A4 |
20 | Washer | Stainless Steel | A2/A4 |
DN400-DN800
No. | Description | Material | Standard |
1 | Body | Ductile Iron | GJS500-7 |
2 | Seat | Stainless Steel | AISI304/316 |
3 | Screw | Stainless Steel | A2/A4 |
4 | Screw | Stainless Steel | A2/A4 |
5 | Screw | Stainless Steel | A2/A4 |
6 | Spring | Stainless Steel | AISI304/316 |
7 | Bonnet | Ductile Iron | GJS500-7 |
8 | Bush | Bronze | C61900 |
9 | O-ring | Rubber | NBR |
10 | Fix Washer | Bronze | C61900 |
11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
12 | Eye Bolts | Carbon Steel | 1040 |
13 | Fixing holder | Ductile Iron | GJS500-7 |
14 | Disc Holder | Ductile Iron | GJS500-7 |
15 | Seal | Rubber | EPDM |
16 | Seal Retainer | Ductile Iron | GJS500-7 |
17 | Stem | Stainless Steel | AISI304/316 |
18 | Plug | Stainless Steel | AISI304/316 |
19 | O-ring | Rubber | NBR |
20 | Cap | Ductile Iron | GJS500-7 |
21 | Plug | Stainless Steel | AISI304/316 |
22 | Screw | Stainless Steel | A2/A4 |
23 | O-ring | Rubber | NBR |
24 | Screw | Stainless Steel | A2/A4 |
