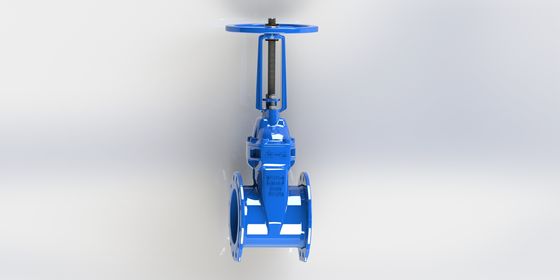

Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring

Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring

  • Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring
  • Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring
  • Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring
  • Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring
Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: ISO9001, EN1074-2
Model Number: RBHX, GBCX, GBHX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD, RMB
Packaging Details: Plywood Case
Delivery Time: Based On Order
Payment Terms: L/C, T/T
Supply Ability: 2 Containers in 60 days
Contact Now
Detailed Product Description
Standard: BS5163, ISO9001 Color: Blue , Red EY300
Rubber Material: EPDM O-ring: NBR
Valve Material: Ductile Iron Powder: WRAS Approved Blue
Highlight:

Epoxy Coating Resilient Wedge Gate Valve

,

NBR O Ring Wedge Gate Valve

,

BS5163 Wedge Type Gate Valve





Soft Seated Rubber Wedge Gate Valve With NBR O Ring Drinking Water Approved





Description:

AFC resilient seated gate valve is a soft seal wedge which is fully encapsulated with rubber. Our valve is invented with new technology for light operating, no clogging and no corrosion, good resilient memory & long service life. It can be used widely in all kinds of water supply & sewage system, fire-fighting and work as a shut-off or regulating valve.



Flanged ends apply with EN 1092-2.



The valve can be operated via handwheel, extension spindle, or electric actuators(on request).



Approval:



1. WRAS

2. EN1074-2

3. ISO 9001



Production Quality Control



IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing



Production Process:

1. Shot Blasting

2. Fusion Bonded Epoxy Coating

3. Assembling

4. 100% tested with shell test and seat test for both side.



Application:

Size DN50-DN600
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1





Material:

Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring 0



Soft Seated Rubber Epoxy Coating Resilient Wedge Gate Valve With NBR O Ring 1
