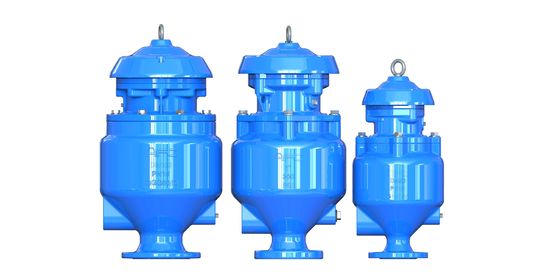

BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated

BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated

  • BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated
  • BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated
  • BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated
  • BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated
BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: ISO9001-2015
Model Number: SKAR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable USD RMB
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Spill Free Sewage Air Release Valve For Wastewater , Fushion Bonded Epoxy Coated Model Code: SKAR
Material: Ductile Iron GJS500-7 Internal Parts: SS316
Coating: Fushion Bonded Epoxy Flow Area: Full Flow Area
Color: RAL5010 RAL5015 Specialty: Spill Free
High Light:

BS EN1074-4 Sewage Air Release Valve

,

DN 50mm Sewage Air Release Valve

,

Fusion Bonded Epoxy Coated Wastewater Valve





Spill Free Sewage Air Release Valve For Wastewater , Fushion Bonded Epoxy Coated



​​

Functions:


Combination kinetic air release valve provide 3 functions:

1. Large air release

1-1. During filling the pipeline, float will stay at its original position. (open)

1-2. Let large air out of valve thru big nozzle.



2. Small air release

2-1. When the water level comes up to the top, float will be up to its close position and close the sealing arc- big orifice and small orifice.

2-2. The air (2% of solved air in water ) are continuously coming out from water and gather at the top of the valve.

2-3. The float will be driven down and let small pocket out thru small orifice.

2-4. The sealing arc will still be in close position until empty of water



3. Large air intake during draining of the pipeline.

3-1. Float will drop down when empty of pipeline.

3-2. Large air will come into the pipeline thru valve.

3-3. Preventing from collapse of pipeline and break vacuum.

3-4. Protect the sealing o-ring from clogging in the pipeline.


Features:



Spill Free.

.  Wider middle body, shorter in height.
Slow down the flow velocity, keep sewage in the body.

Drain boss at the top & bottom for cleaning.

.  Float movement support by both cage and body guide
.  Fast water rising on the back of middle part, prevent direct flushing up to top and out of main body.

.  No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
.  Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard : BS EN1074-4, AWWA C512
. Flange drilling and dimension : BS EN 1092 and BS EN 558 and ANSI flange.

• 100% -full flow area thru the valve internal.
• Can blow off the water on top of the sealing arc thru small orifice and keep it dry to prevent polluted water coming into pipeline during vacuum.
• Most parts of valves can be recycled.
• All internal parts are 316SS material without rusting.
• Float with a rubber sealing can be as an absorber to prohibit water hammer direct acting on the sealing arc and seat impact.


Service Fields:
For sewage water system.


Technical Data:
Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.
Please consult factory for PN25 and antishock device whenever there is waterhammer issue.


Quick Selection Table
Water Flow Rate
CMH
1360 4160 8500 19100 33400
Main pipe size
MM
80-400 400-700 750-1000 1050-1500 1500-2000
Size of SKAR
MM
50 80 100 150 200


Material:

BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated 0



Part List
No. Part Name Material Standard
1 Body Ductile Iron EN GJS500-7
2 Float Stainless Steel ANSI 304/316L
3 Middle Part Ductile Iron EN GJS500-7
4 O-ring Rubber NBR
5 Hex Bolt Stainless Steel ANSI 304
6 Washer Stainless Steel ANSI 304
7 Bonnet Ductile Iron EN GJS500-7
8 Cover Ductile Iron EN GJS500-7
9 Washer Stainless Steel Commercial/ANSI 304/316L
10 Hex Bolt Stainless Steel Commercial/ANSI 304/316L
11 Eyebolt Carbon Steel Commercial
12 Pillar Aluminum Commercial
13 O-ring Rubber NBR
14 Seat Rubber NBR
15 Sealing Arc Stainless Steel ANSI 304/316L
16 Orifice Seat Rubber NBR
17 Stem Stainless Steel ANSI 304/316L
18 Plug-Option Stainless Steel ANSI 304/316L
19 Small Orifice Stainless Steel ANSI 304/316L



Dimension:

BS EN1074-4 DN 50mm Sewage Air Release Valve Fusion Bonded Epoxy Coated 1

DN Model No. H ΦD ΦK ΦB n-φd C
PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16
50 SKAR-0050 558 165 125 99 4-φ19 19
80 SKAR-0080 653 200 160 132 8-φ19 19
100 SKAR-0100 676 220 180 156 8-φ19 19
150 SKAR-0150 810 285 240 211 8-φ23 19
200 SKAR-0200 950 340 295 266 8-φ23 12-φ23 20
