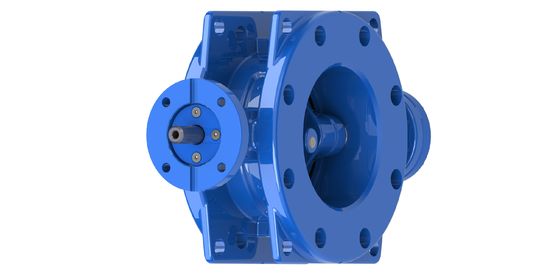

PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve

PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve

  • PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve
  • PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve
  • PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve
  • PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve
PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: NSF61 372
Model Number: FBGD, FBBD, FBED,FBPD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Plywood cases and pallets
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 2 containers in 60 days
Contact Now
Detailed Product Description
Product Name: Double Eccentric Butterfly Valve Flange Type Model Code: FBGD FBBD
Color: Blue RAL 5010 / 5015 NSF61 Material: Ductile Iron GSJ500-7
Disc Seat: 316L Body Seat: EPDM
Pressure Rating: PN10, PN16, PN25,ANSI Standard Standard: AWWA C504
Flow Media: Clear Water
Highlight:

Rubber Seat Double Eccentric Butterfly Valve

,

PN25 Double Eccentric Butterfly Valve

,

PN16 Butterfly Control Valve




                                  Rubber Seat Double Eccentric Butterfly Valve SS316 Disc Ring



Description:



AFC's Double Eccentric Flange Butterfly Valve is a newly advanced design butterfly valve. With double eccentric design and soft rubber seal on the body, the operational toque is one of the lowest among all the butterfly valves and can be sealed in both directions,disc and stem are very strong without any deformation.



Size DN150-DN350mm,disc is flat shape, allowing bigger rubbish to flow through. DN350 to DN1200mm disc are arch shape with stronger ribs on the back, causing less compression and wearing of seal rubber to increase the life of rubber seal. Also, water head loss reduced a lot and turbulence minimized,thus flow through disc energy is saved and lowering the pumping cost.




Features:

Small platform on the valve body.
Strong protection-keep the sleeve bearing fully in the hole.
No harm to the bearing during operation.





Special Bearing:



Carbon Steel base coated with bronze + PTFE interior for lubricant and tin exterior to prevent rusty.

Stronger than bronze bearing and last longer




Online repairing by EPOXY:



The user only needs to repair the rubber seal from the exterior of the butterfly valve without going into the pipeline. The total repairing time could be around less than 1 hr for all kinds of the size.



Arch shape disc design :

Reduce head loss and minimize turbulence
Flow thru disc-energy saving, lower pumping cost


Rubber Seat:


Epoxy injected on the backside of groove

Dovetail design can tight the rubber seal
Multi ribs on the seal-reduce operation torque
Seal fixed in the groove and epoxy on the back side as a wedge, no worry of loosen
No need bolting and permanent positioned , decrease nut loose & hole rusting


Operation Torque list for your reference:


Bare Head Torque (Nm)
Inch Nm
4 85
6 128
8 210
10 250
12 372
14 760
16 1160
18 1280
20 1680
24 2500
28 2592
32 4428
36 5300
40 7245
48 13320


Materials:

 PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve 0PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve 1

PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve 2

Item No. Part Name Material Standard
1 Body Ductile Iron GJS500-7
2 Lower Shaft Stainless Steel AISI304
3 Disc Ductile Iron GJS500-7
4 Main Shaft Stainless Steel AISI304
5 Backup Ring Plastic PTFE
6 Retaining Plate Carbon Steel Commercial
7 Shaft Key Carbon Steel Commercial
8 In hex bolt Carbon Steel Commercial
9 O-ring Rubber NBR
10 Shaft Bearing Carbon Steel+Bronze/PTFE Commercial
11 In hex bolt Carbon Steel Commercial
12 Pin Stainless Steel AISI431
13 In hex bolt Carbon Steel Commercial
14 Shaft Bearing Carbon Steel+Bronze/PTFE Commercial
15 Position Plate Carbon Steel Commercial
16 Nut Carbon Steel Commercial
17 In hex bolt Carbon Steel Commercial
18 Bottom Flange Ductile Iron GJS500-7
19 O-ring Rubber NBR
20 Thrust washer Bronza C62300
21 Disc Seat DI+Stainless Steel GJS500-7+316SS L
22 Body Seat Rubber EPDM
23 Wedge Epoxy Commercial
24 Worm Gear Ductile Iron Commercial
For size ≥DN900


Dimension:


PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve 3

PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve 4



PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve 5

PN10 PN16 PN25 Rubber Seat Double Eccentric Butterfly Valve 6
