|Place of Origin:||China|
|Brand Name:||AFC, OEM|
|Model Number:||GBCX GBHX RBHX|
|Minimum Order Quantity:||1|
|Packaging Details:||Plywood cases|
|Delivery Time:||60 days for 2 container|
|Payment Terms:||L/C, T/T|
|Supply Ability:||Based on order|
|Product Name:||Outside Screw Yoke Gate Valve||Model Code:||GBCX GBHX RBHX|
|Material:||GGG DI||Coating:||Fusion Bonded Epoxy|
|Stem:||SS420 SS413||HW:||Carbon Steel , Ductile Iron|
|Color:||Blue, Red||Pressure Rating:||PN10,16|
Outside Screw Yoke Gate Valve,
Rubber Wedge Yoke Gate Valve,
Fusion Bonded Epoxy Coated Yoke Valve

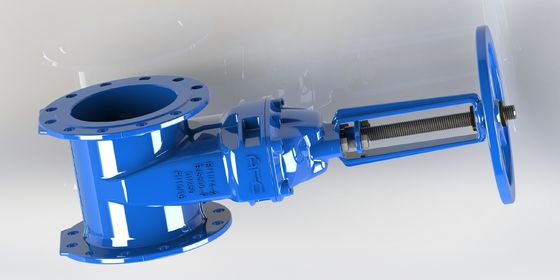

Outside Screw Yoke Gate Valve With Rubber Wedge / Fusion Bonded Epoxy Coated
AFC's OS and Y gate valve are can be used in Fire Fighting System. Fusion bonded epoxy coated to prevent corrosion. The minimum coating thickness is 250um. Customized coating thickness is allowalble.
Easy operating with low torque.
Advanced design with less weight.
Water supply, sewage, fire fighting, irrigation, water circulation, heat, cooling system.
1. Body, Yoke and Bonnet are made of GSJ500-7.
2. Wedge is fully coated by EPDM.
3. Rolled Stem thread
4. HW can be Carbon Steel or Ductile Iron.
5. Long lasting life.
6. Nylon Guiding can help to reduce the torque.
1. IQC - Incoming QC - We checked all incoming parts to ensure they are qualified.
2. IPQC - Input Process QC - During the production process, we checked the quality.
3. FQC - Final QC - All finished goods are 100% tested by factory.
4. OQC - Outgoing QC - Clean, packing and ensure the QTY is correct.
5. Tested standard : Seat :1.1 x PN, Body: 1.5 x PN
|Working Temperature||- 10C- 80C|
|Flow Media||Water, Sewage Water|
|Face to Face||EN558-1|
