DN800 SS304 Pilot Epoxy Coated Pressure Control Valve

DN800 SS304 Pilot Epoxy Coated Pressure Control Valve

  • DN800 SS304 Pilot Epoxy Coated Pressure Control Valve
  • DN800 SS304 Pilot Epoxy Coated Pressure Control Valve
  • DN800 SS304 Pilot Epoxy Coated Pressure Control Valve
  • DN800 SS304 Pilot Epoxy Coated Pressure Control Valve
DN800 SS304 Pilot Epoxy Coated Pressure Control Valve
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: EN1074-5
Model Number: A100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Pressure Control Valve With Water Tanks Level Control EPOXY Coated Material: Ductile Iron GJS500-7
Pilot Material: SS304 Standard: EN1074-5
Function: Modulating Coating: EPOXY
Diaphragm: Nylon Reinfocement With EPDM
High Light:

Epoxy Coated Pressure Control Valve

,

SS304 Pilot Pressure Control Valve

,

DN800 Pressure Control Valve

Pressure Control Valve With Water Tanks Level Control EPOXY Coated





Description:

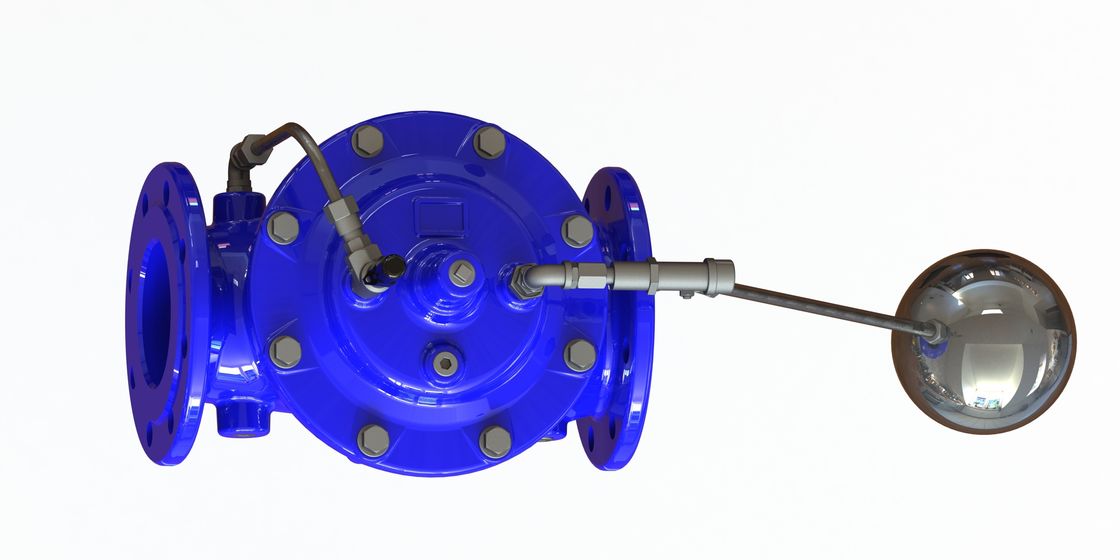

A100 is a remote float control valve. Use A100 for reservoirs and water tanks level control in any situation maximum water level should be maintained. No need for energy other than line pressure. A100 is the best fit in remote sites. Main valve can be placed both inside and outside of water tank and unnecessary to removal from the main line. All iron parts are powder fusion epoxy bonded against rusty, which makes valve long term service. When water level decrease the float drop , main valve open, water start to flow in. When float reaches high water level, close the main valve



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

DN800 SS304 Pilot Epoxy Coated Pressure Control Valve 0DN800 SS304 Pilot Epoxy Coated Pressure Control Valve 1



DN800 SS304 Pilot Epoxy Coated Pressure Control Valve 2



DN400-DN800



DN800 SS304 Pilot Epoxy Coated Pressure Control Valve 3DN800 SS304 Pilot Epoxy Coated Pressure Control Valve 4

DN800 SS304 Pilot Epoxy Coated Pressure Control Valve 5
