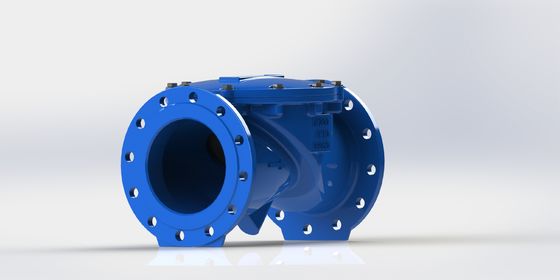

Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer

Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer

    • Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer
    • Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer
    • Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer
  • Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer

    Product Details:

    Place of Origin: China
    Brand Name: AFC
    Certification: CE, NSF61/372
    Model Number: RDCV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD RMB
    Packaging Details: Plywood cases
    Delivery Time: 45-60 days
    Payment Terms: L/C, T/T
    Supply Ability: Based on order
    Contact Now
    Detailed Product Description
    Material: GJS500-7 Standard: EN12233
    Coating: EPOXY Disc: EPDM
    Incline Angle: 40 Degree Media: Water And Waste Water





    Ductile Iron NSF 61 Swing Flex Check Valve 40 degree incline EPOXY Coated Nylon Reinforcement Disc ​







    Description:

             Rubber Disc Check Valve,  is a totally covered by EPDM or NBR rubber with nylon reinforcement and that is good for reliable reverse flow prevention. It can be used both in clean water/sewage water. The disc made of CS plate, 304SS bar and nylon reinforcement.It is a 40 degree angle declined seat  helping to close quickly and minimize the water hammer and slamming.



    Features:



    Simple design disc w/o movable components

    Over 50,000 cycles operations

    Powder coating for corrosion resistance

    40 degree incline angle-lower stroke and reduce water hammer and slamming.

    Simple design, few internal components and big top cover makes inner cleaning, parts replacement and maintenance easier.

    Keep 100% full flow area, reduce head loss.



    General Applications:


    For general water supply, fire fighting,HVAC/ cooling & sewage system.



    Technical Data:



    Size DN50-DN600
    Working Temperature - 10C- 80C
    Flange AISI B16.1 Or PN16
    Flow Media Water and Waste Water



    Material:



    Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer



    Dimension: Unit:mm
    DN Model No. L D1 D2 n-φd C
    PN10 PN16 PN10 PN16 PN10 PN16
    50 RDCV-0050 203 165 125 4-φ19 19
    65 RDCV-0065 216 185 145 4-φ19 19
    80 RDCV-0080 241 200 160 8-φ19 19
    100 RDCV-0100 292 220 180 8-φ19 19
    125 RDCV-0125 330 250 210 8-φ19 19
    150 RDCV-0150 356 285 240 8-φ23 19
    200 RDCV-0200 495 340 295 8-φ23 12-φ23 20
    250 RDCV-0250 622 395 405 350 355 12-φ23 12-φ28 22
    300 RDCV-0300 698 445 460 400 410 12-φ23 12-φ28 24.5
    350 RDCV-0350 787 505 520 460 470 16-φ23 16-φ28 24.5
    400 RDCV-0400 914 565 580 515 525 16-φ28 16-φ31 24.5
    *450 RDCV-0450 914 615 640 565 585 20-φ28 20-φ31 25.5
    500 RDCV-0500 978 670 715 620 650 20-φ28 20-φ34 26.5
    *600 RDCV-0600 1067 780 840 725 770 20-φ31 20-φ37 30
    *DN450 use the same F/F dimension of DN400



    Epoxy Coating Ductile Iron Swing Flex Check Valve Reduce Headloss And Water Hammer
