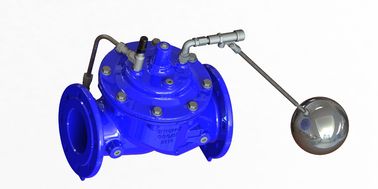

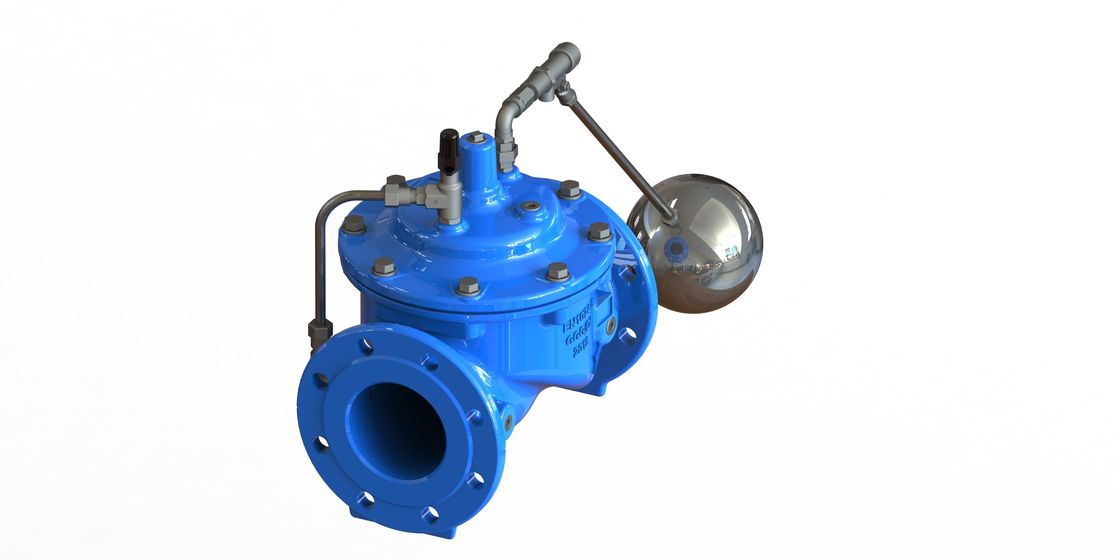

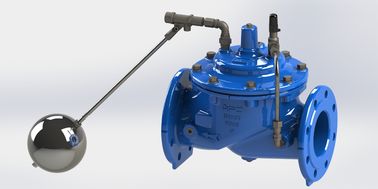

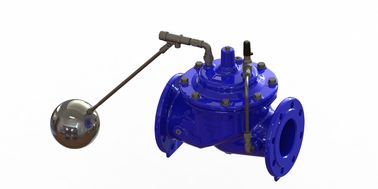

Float Control Valve Ductile Iron Main Valve SS304 Pilot EPOXY Coated
A100 - the remote float control valve is used to control the liquid level by float in water tank.
It closes very tightly. Soft resilient seated sealing and hydraulic operating makes closing pressure and inlet water pressure to be direct ratio, so the sealing is very good.
Crossing flow volume is very large. flow tunnel with half straight line , wide valve body and equal across flowing sectional area design lowers valve flow resistance a lot.
Operatation is very safe. Closure speed can be adjusted. valve works steadily, no pressure changes while opening or closing
.
Maintenance is easy. Main valve can be placed both inside and outside of water tank and it's unnecessary to removal from the main line.
All iron parts are powder fusion epoxy coated anti rusty, that makes valve long term service
Service Fields:
For irrigation system,water system .
Technical Data:
Size | DN50-DN800 |
Working Temperature | - 10C- 80C |
Flange | AISI B16.1 Or PN16 |
Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
Parts List | |||
No. | Description | Material | Standard |
1 | Body | Ductile Iron | GJS500-7 |
2 | Seat | Stainless Steel | AISI304/316 |
3 | O-ring | Rubber | NBR |
4 | O-ring | Rubber | NBR |
5 | Bolt | Stainless Steel | A2/A4 |
6 | Washer | Stainless Steel | A2/A4 |
7 | Bonnet | Ductile Iron | GJS500-7 |
8 | Bush | Bronze | C61900 |
9 | Spring | Stainless Steel | AISI304/316 |
10 | Caulking Nut | Stainless Steel | A4 |
11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
12 | Fixing Holder | Ductile Iron | GJS500-7 |
13 | Disc Holder | Ductile Iron | GJS500-7 |
14 | Seal | Rubber | EPDM |
15 | Seat Retainer | Stainless Steel | AISI304/316 |
16 | Stem | Stainless Steel | AISI304/316 |
17 | Plug | Stainless Steel | AISI304/316 |
18 | Screw | Stainless Steel | A2/A4 |
19 | Plug | Stainless Steel | A2/A4 |
20 | Washer | Stainless Steel | A2/A4 |
DN400-DN800
Parts List | |||
No. | Description | Material | Standard |
1 | Body | Ductile Iron | GJS500-7 |
2 | Seat | Stainless Steel | AISI304/316 |
3 | Screw | Stainless Steel | A2/A4 |
4 | Screw | Stainless Steel | A2/A4 |
5 | Screw | Stainless Steel | A2/A4 |
6 | Spring | Stainless Steel | AISI304/316 |
7 | Bonnet | Ductile Iron | GJS500-7 |
8 | Bush | Bronze | C61900 |
9 | O-ring | Rubber | NBR |
10 | Fix Washer | Bronze | C61900 |
11 | Diaphragm | Nylon Reinforced Rubber | EPDM+Nylon Fabric |
12 | Eye Bolts | Carbon Steel | 1040 |
13 | Fixing Holder | Ductile Iron | GJS500-7 |
14 | Disc Holder | Ductile Iron | GJS500-7 |
15 | Seal | Rubber | EPDM |
16 | Seat Retainer | Ductile Iron | GJS500-7 |
17 | Stem | Stainless Steel | AISI304/316 |
18 | Plug | Stainless Steel | AISI304/316 |
19 | O-ring | Rubber | NBR |
20 | Cap | Ductile Iron | GJS500-7 |
21 | Plug | Stainless Steel | AISI304/316 |
22 | Screw | Stainless Steel | A2/A4 |
23 | O-ring | Rubber | NBR |
24 | Screw | Stainless Steel | A2/A4 |
