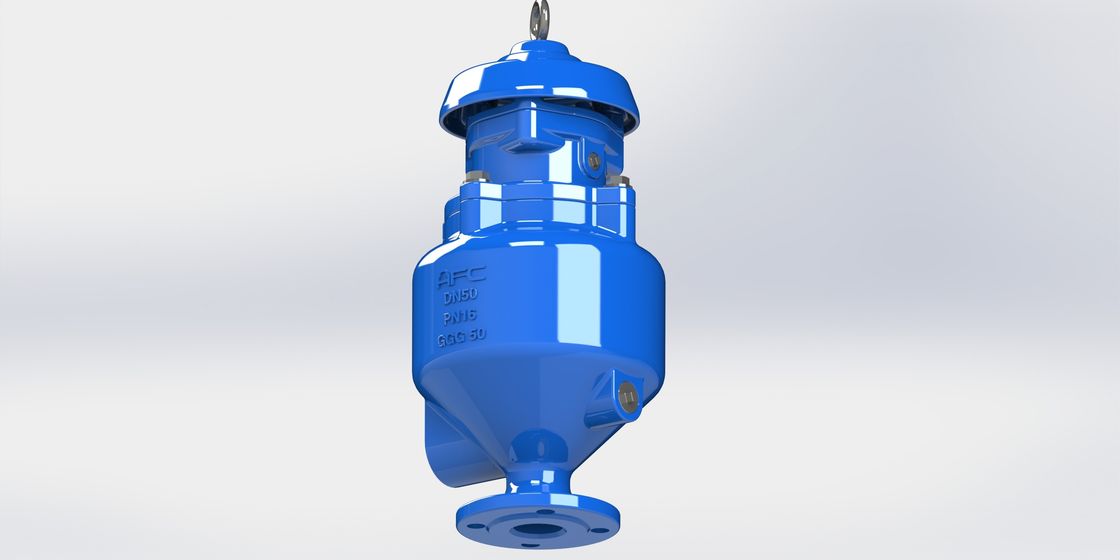

Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer

Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer

    • Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer
    • Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer
    • Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer
  • Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer

    Product Details:

    Place of Origin: China
    Brand Name: AFC OEM
    Certification: ISO9001-2015
    Model Number: SKAR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD RMB
    Packaging Details: Plywood cases
    Delivery Time: 45-60 days
    Payment Terms: L/C, T/T
    Supply Ability: Based on order
    Contact Now
    Detailed Product Description
    Material: Ductile Iron GJS500-7 Internal Parts: SS316
    Coating: Fushion Bonded Epoxy Flow Area: Full Flow Area
    Color: RAL5010 Specialty: Spill Free





    Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer







    Description:



        In waste water system , additional gas will accumulate because of all kinds of gas or air to ventilate the waste water. In order to minimize the headloss, SKAR - sewage air release valve is very important to be installed for venting the air in pipeline. Air release takes place at high points, on long ascending and descending pipe sections, downstream of pumps, upstream of restrictions.

    ​​

       Sewage air release valve with anti-shock device can help to prevent water hammer so that can minimize headloss. It decreased the water velocity and restrict the velocity of air flow. This type of valve is generally used in long sewage water transmission pipeline where may have water hammer. If the air exhaust out the valve too quick, the waste water will comes in very fast, too. The water will prevent the float go up which caused the valve leaking.



    Function:



    Combination kinetic air release valve provide 3 functions:



    1. Large air release -

    Anti shock device to prevent fast flow and water hammer. Decrease the air exhausting velocity to prevent water hammer. Slow down water and air out with multi holes on top sealing arc



    2. Small air release

    When operation the air produced by the pipeline is accumulated in the upper part. Little by little it is compressed and its volume increases, pushing the liquid level downwards and allowing the air release through the small nozzle.



    3. Large air intake during draining of the pipeline.

    During pipeline draining, or pipe bursts, it is necessary to bring in as much air as the quantity of outflowing liquid. This is to avoid bad pressure and strong damages to the pipeline and the total system





    Features:



    Without spilling.

    .  Wider middle body, shorter height.
    Slow down the flow velocity, keep sewage in the body.

    Drain boss at the top & bottom for cleaning.

    .  Fully fusion epoxy coated inside and outside of valve body for long term services.
    • Most parts of valves can be recycled.
    • Float with a rubber sealing can be as an absorber to prohibit water hammer direct acting on the sealing arc and seat impact.
    • All internal parts are 316SS material without rusting.



    Service Fields:


    For sewage water system.


    Technical Data:


    Size range: DN 50-200MM
    Pressure ratings:1.0Mpa,1.6Mp (Flange)
    Working temperature: -10°-80°C.
    Flow media: sewage water.
    Please consult factory for PN25 and antishock device whenever there is waterhammer issue.



    Quick Selection Table
    Water Flow Rate
    CMH
    1360 4160 8500 19100 33400
    Main pipe size
    MM
    80-400 400-700 750-1000 1050-1500 1500-2000
    Size of SKAR
    MM
    50 80 100 150 200



    Material:

    Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer



    No. Part Name Material Standard
    1 Body Ductile Iron EN GJS500-7
    2 Float Stainless Steel AISI 304/316L
    3 Middle Part Ductile Iron EN GJS500-7
    4 O-ring Rubber NBR
    5 Hex Bolt Stainless Steel AISI304
    6 Washer Stainless Steel AISI304
    7 Bonnet Ductile Iron EN GJS500-7
    8 Cover Ductile Iron EN GJS500-7
    9 Washer Stainless Steel Commercial/AISI304/316
    10 Hex Bolt Stainless Steel Commercial/AISI304/316
    11 Eyebolt Carbon Steel Commercial
    12 Pillar Aluminium Commercial
    13 O-ring Rubber NBR
    14 Seat Rubber NBR
    15 Sealing Arc Stainless Steel AISI304/316L
    16 Orifice Seat Rubber NBR
    17 Stem Stainless Steel AISI304/316L
    18 Plug-option Stainless Steel AISI304/316L
    19 Small orifice Stainless Steel AISI304/316L





    Dimension:

    Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer

    Spill Free Sewage Air Release Valve With Anti Shock Design To Prevent Water Hammer
