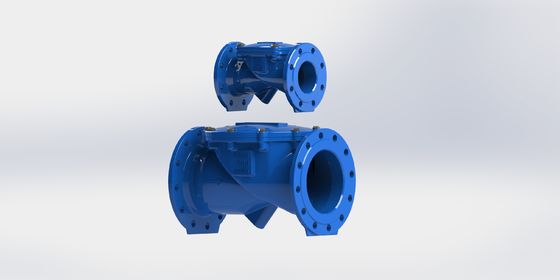

Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc

Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc

  • Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc
  • Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc
  • Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc
  • Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc
Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc
Product Details:
Place of Origin: China
Brand Name: AFC,OEM
Certification: CE, NSF61/372
Model Number: RDCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable USD RMB
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: GJS500-7 Standard: EN12233
Coating: EPOXY Disc: EPDM
Incline Angle: 40 Degree Media: Water And Waste Water
High Light:

swing check valve

,

swing type check valve







40 degree incline EPOXY Coated Swing Flex Check Valve Nylon Reinforcement Disc Ductile Iron​







Description:



    RDCV is rubber disc check valve fully encapsulated resilient disc seat, double flange swing check valve for reliable reverse flow prevention. It's OK for both clean water/sewage water applications. It is a 40 degree angle declined seat which can help close quickly and reduce the water hammer and slamming.



Features:



Simple design disc w/o movable components

More than 50,000 times cycles operations

No rusting-long service

40 degree incline angle-lower stroke and reduce water hammer and slamming.

Nearlyhalf stroke of traditional check valve.

Keep 100% full flow area that can reduce head loss.



Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Water and Waste Water



General Applications:


For general water supply, fire fighting,HVAC/ cooling & sewage system.



Quality System
IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing



Material:



Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc 0



Dimension
DN Model No L D1 D2 n-φd C
PN10 PN16 PN10 PN16 PN10 PN16
50 RDCV-0050 203 165 125 4-φ19 19
65 RDCV-0065 216 185 145 4-φ19 19
80 RDCV-0080 241 200 160 8-φ19 19
100 RDCV-0100 292 220 180 8-φ19 19
125 RDCV-0125 30 250 210 8-φ19 19
150 RDCV-0150 356 285 240 8-φ23 19
200 RDCV-0200 495 340 295 8-φ23 12-φ23 20
250 RDCV-0250 622 395 405 350 355 12-φ23 12-φ28 22
300 RDCV-0300 698 445 460 400 400 12-φ23 12-φ28 24.5
350 RDCV-0350 787 505 520 460 460 16-φ23 16-φ28 24.5
400 RDCV-0400 914 565 580 515 515 16-φ28 16-φ31 24.5
*450 RDCV-0450 914 615 40 565 565 20-φ28 20-φ31 25.5
500 RDCV-0500 978 670 715 620 620 20-φ28 20-φ34 26.5
*600 RDCV-0600 1067 780 840 725 725 20-φ31 20-φ37 30
*DN450 use the same F/F dimension of DN400



Incline Wastewater Ductile Iron Body Wafer Swing Check Valve With Rubber Disc 1
