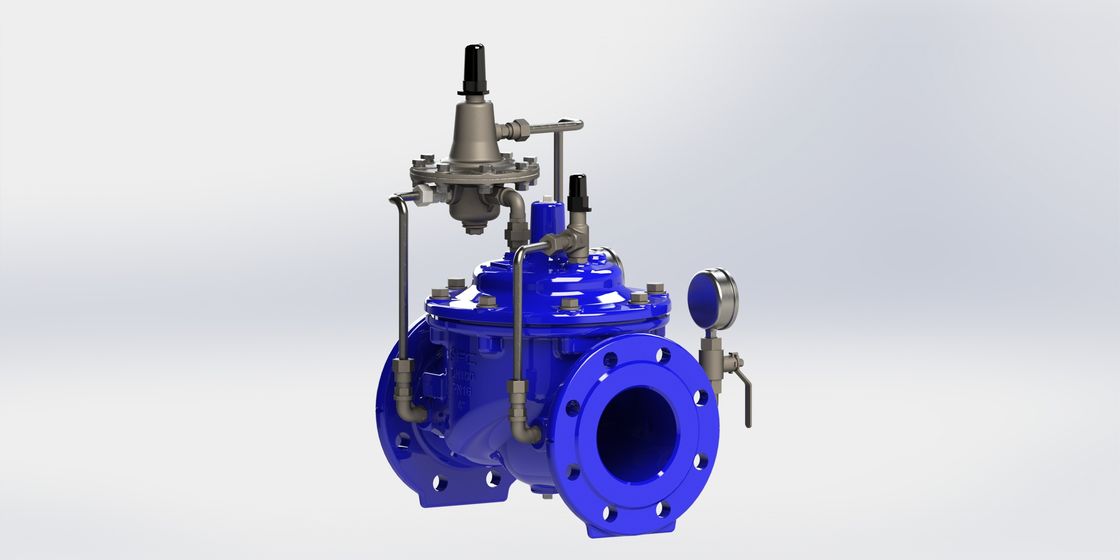

Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe

Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe

    • Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe
    • Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe
    • Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe
  • Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe

    Product Details:

    Place of Origin: China
    Brand Name: AFC
    Certification: EN1074-5
    Model Number: A400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD RMB
    Packaging Details: Plywood cases
    Delivery Time: 15-60 days
    Payment Terms: L/C, T/T
    Supply Ability: based on order
    Contact Now
    Detailed Product Description
    Material: Ductile Iron - GJS500-7 Pilot Material: SS304
    Standard: EN1074-5 Diaphragm: Nylon Reinforcement With EPDM
    Color: Blue Ral5010 Control Pipe: Stainless Steel 304





    Ductile Iron Flow Control valve Stainless Steel Pilot Blue Colored Nylon Reinforcement Diaphragm







        A400 Flow Rate Control Valve is activated by line pressure and controlled by a pilot valve. The pilot includes a springloaded membrane. An orifice plate is installed either downstream or upstream of the A400. The orifice size is prepared in advance to suit the specified required flow rate.


        The head loss across the orifice is proportional to flow rate through the A400 valve. This head loss is transferred to the opposite sides of the pilot's membrane, which moves upward or downward accordingly. These movements open or close the inner ports of the pilot valve, directing the line pressure to control the A400.



    Service Fields:


    For water system, irrigation system.



    Technical Data:



    Size DN50-DN800
    Working Temperature - 10C- 80C
    Flange AISI B16.1 Or PN16
    Flow Media Clean Water



    Consult Factory for other applications
    IP68 for water resistance
    Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



    Materials And Dimension



    DN50-DN350

    Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control PipePilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe



    Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe



    DN400-DN800



    Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control PipePilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe

    Pilot Controlled Flow Restrictor Valve Stainless Steel 304 Control Pipe
