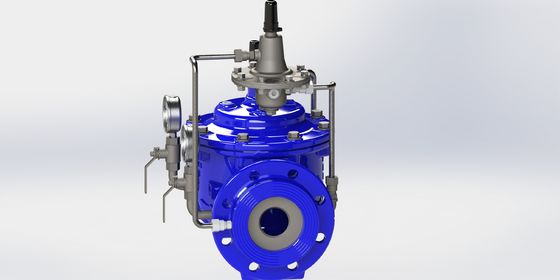

Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm

Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm

  • Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm
  • Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm
  • Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm
Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: EN1074-5
Model Number: A400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: based on order
Contact Now
Detailed Product Description
Material: Ductile Iron - GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Diaphragm: Nylon Reinforcement With EPDM
Color: Blue Ral5010 Control Pipe: Stainless Steel 304
High Light:

constant flow valve

,

flow measurement valve





Stainless Steel Pilot Nylon Reinforcement Diaphragm Portable Water Control Flow control valve Ductile Iron​







A400 is easy to install and operate, malfunction is not easy to happen for no electric transmitting sensor in control system, pre-setting is very simple, after setting, it acts modulating function automatically, no need of manual operation or other power driving. All iron parts are powder fusion epoxy bonded against rusty,which makes valve long term service



A400 can control the flow rate of water supplying pipeline by keeps pre-setting flow volume. It limits excessive flow within pre-setting value. Even the upstream pressure changes, downstream flow volume will not be affacted



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm 0Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm 1



Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm 2



DN400-DN800



Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm 3Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm 4

Stainless Steel Pilot Flow Control Valve Nylon Reinforcement Diaphragm 5
