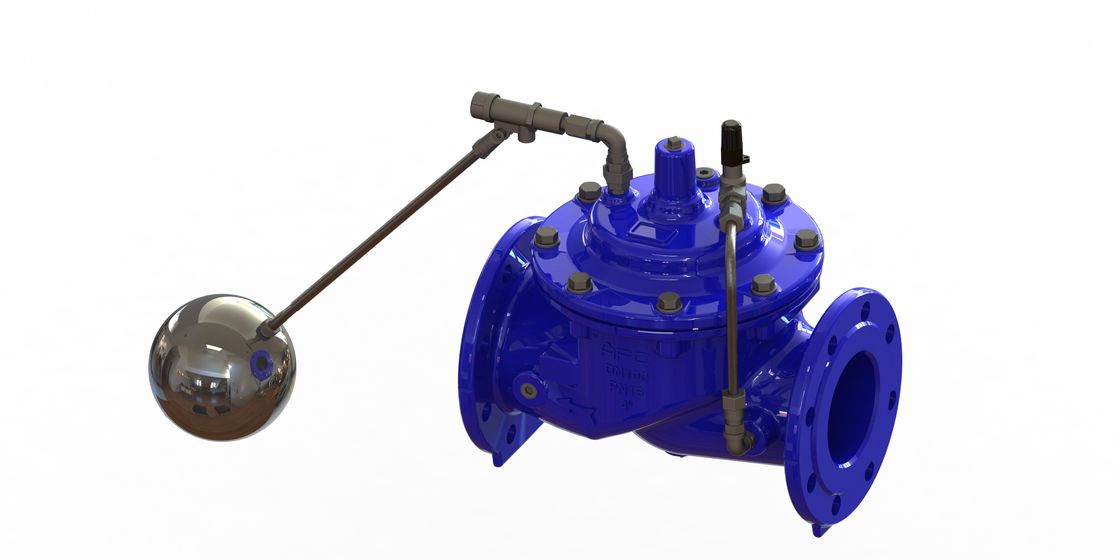

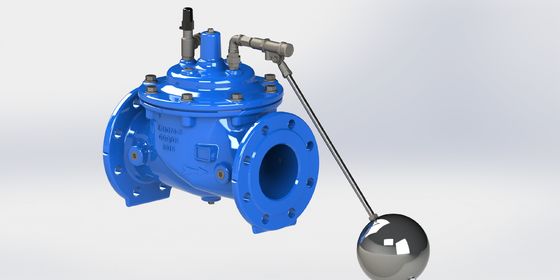

Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve

Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve

    • Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
    • Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
    • Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
  • Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve

    Product Details:

    Place of Origin: China
    Brand Name: AFC
    Certification: EN1074-5
    Model Number: A100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD RMB
    Packaging Details: Plywood cases
    Delivery Time: 15-60 days
    Payment Terms: L/C, T/T
    Supply Ability: Based on order
    Contact Now
    Detailed Product Description
    Material: Ductile Iron GJS500-7 Pilot Material: SS304
    Standard: EN1074-5 Function: Modulating
    Coating: EPOXY Diaphragm: Nylon Reinfocement With EPDM





    Nylon Reinfocement Diaphragm Stainless Steel Pilot Modulating Float control valve Full Bore EPOXY Coated ​







    A100 is used to maintain a preset water level in a reservoir or a water tank in a simple, economic manner. The A100 valve is activated by the line pressure.
    The A100 stays open as long as the water level in the reservoir is below the preset level. As the water level rises and lifts the float, the valve gradually closes.



    Service Fields:


    For water system, irrigation system.



    Technical Data:



    Size DN50-DN800
    Working Temperature - 10C- 80C
    Flange AISI B16.1 Or PN16
    Flow Media Clean Water





    Consult Factory for other applications
    IP68 for water resistance
    Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



    Materials And Dimension



    DN50-DN350

    Modulating Blue Floating Ball Valve , Full Bore Water Level Float ValveModulating Blue Floating Ball Valve , Full Bore Water Level Float Valve



    Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve



    DN400-DN800



    Modulating Blue Floating Ball Valve , Full Bore Water Level Float ValveModulating Blue Floating Ball Valve , Full Bore Water Level Float Valve

    Modulating Blue Floating Ball Valve , Full Bore Water Level Float Valve
