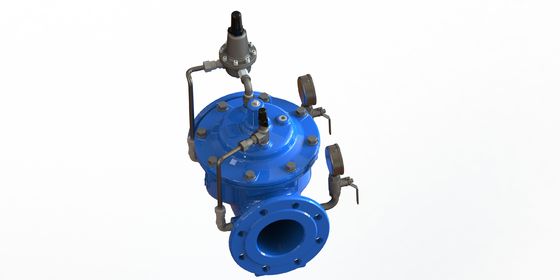

Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm

Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm

  • Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm
  • Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm
  • Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm
Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN1074-5
Model Number: A200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based On order
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Tubing: SS304 Coating: EPOXY
Diaphragm: Nylon Reinforcement With EPDM Rubber: EPDM
Highlight:

adjustable pressure reducing valve

,

stainless pressure reducing valve





Anti cavitation design EPOXY Coated A200 Water Pressure Reducing Valve Ductile Iron Main Valve SS304 Pilot







Description:



A200 maintains a preset downstream pressure, regardless of upstream pressure or flow rate fluctuation.
The main valve is controlled by a 2-way pilot valve (creating a minimal differential in open position) to control the water in upper chamber to regulate the outlet pressure.



Feature:



In-line serviceable – Easy maintenance

   Obstacle free, full bore





Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm 0Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm 1



Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm 2



DN400-DN800



Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm 3Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm 4

Anti Cavitation Design Water Pressure Reducing Valve Nylon Reinforcement Diaphragm 5
