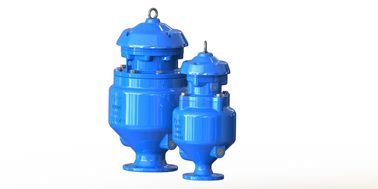

Single Chamber Sewage Air Release Valve For Prohibiting Water Hammer

Product Details:

Place of Origin:	China
Brand Name:	AFC OEM
Certification:	ISO9001-2015
Model Number:	SKAR

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Price Negotiable
Packaging Details:	Plywood cases
Delivery Time:	45-60 days
Payment Terms:	L/C, T/T
Supply Ability:	Based on order

Contact Now

Detailed Product Description

Product Name:	Sewage Air Release Valve	Model Code:	SKAR
Material:	Ductile Iron GJS500-7	Internal Parts:	SS316
Coating:	Fushion Bonded Epoxy	Flow Area:	Full Flow Area
Color:	RAL5010	Specialty:	Spill Free
High Light:	water supply valve , sewage air valve , Single Chamber Sewage Air Valve

Waste Water Triple Function Full Flow Area SS316 Internals Single Chamber Sewage Combination Air Release Valve

Description:

In sewage water, gas will accumulate because of all kinds of gas or air to ventilate the waste water. In case to protect the transmission efficiency, SKAR - sweage air release valve is necessary to install for venting the air in pipeline. Air release takes place at high points, on long ascending and descending pipe sections, downstream of pumps, upstream of restrictions.

Features:

. Manufacturing standard : BS EN1074-4, AWWA C512
. Flange drilling and dimension : BS EN 1092 and BS EN 558 and ANSI flange.

• 100% -full flow area thru the valve internal.

• Can blow off the water on top of the sealing arc thru small orifice and keep it dry to prevent polluted water coming into pipeline during vacuum.

• Most parts of valves can be recycled.

• All internal parts are 316SS material without rusting.

• Float with a rubber sealing on top, provide better sealing ( larger buoyancy ) effect on small orifice.

• Float with a rubber sealing can be as an absorber to prohibit water hammer direct acting on the sealing arc and seat impact.

. Spill Free.
. Advanced design: Simple mechanism and strong float to prevent cracking during sudden water hammer& quick closure.

. Float movement support by both cage and body guide

. Fast water rising on the back of middle part, prevent direct flushing up to top and out of main body.

. No arms or levers to prevent vibrating, bending, direct closure of the float.
. Fully fusion epoxy coated inside and outside of valve body for long term services.

. Wider middle body, shorter in height.

. Slow down the flow velocity, keep sewage in the body.

. Drain boss at the top & bottom for cleaning.

Service Fields:

For sewage water system.

Technical Data:

Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.
Please consult factory for PN25 and antishock device whenever there is waterhammer issue.

Quick Selection Table
Water Flow Rate CMH	1360	4160	8500	19100	33400
Main pipe size MM	80-400	400-700	750-1000	1050-1500	1500-2000
Size of SKAR MM	50	80	100	150	200

Material:

Single Chamber Sewage Air Release Valve For Prohibiting Water Hammer 0

Single Chamber Sewage Air Release Valve For Prohibiting Water Hammer 1

Dimension:

Single Chamber Sewage Air Release Valve For Prohibiting Water Hammer 2

Single Chamber Sewage Air Release Valve For Prohibiting Water Hammer 3
