| Place of Origin: | China |
| Brand Name: | AFC OEM |
| Certification: | ISO9001-2015 |
| Model Number: | SKAR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD RMB |
| Packaging Details: | Plywood cases |
| Delivery Time: | 45-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Material: | Ductile Iron GJS500-7 | Internal Parts: | SS316 |
|---|---|---|---|
| Coating: | Fushion Bonded Epoxy | Flow Area: | Full Flow Area |
| Color: | RAL5010 | Specialty: | Spill Free |
| High Light: | water supply valve,sewage air valve,Blue Sewage Air Valve |
||

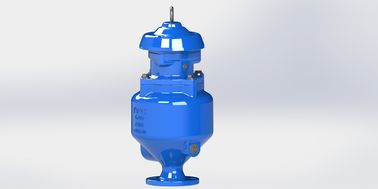

Triple Function Large Air Exhausting Small air venting vacuum breaker Combination Sewage Air Release Valve
Feature
Combination kinetic air release valve provide 3 functions:
1.Large air release during fi lling of the pipeline.
2.Small air release under pressurized pipeline.
3.Large air intake during draining of the pipeline.
. Advanced design with simple mechanism, strong float to prevent cracking during sudden water hammer& quick closure.
. Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.
. No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
. Smooth cage outside of the float, keep float moving in specifi ed guide rail.
. Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
. Outside screen will be an option for safety and prevent insects or birds in.
. Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard meets BS EN1074-4, AWWA C512
. Flange drilling and dimension meets BS EN 1092 and BS EN 558 and ANSI flange.
Service Fields:
For sewage water system.
Technical Data:
Size range: DN 50-200MM
Pressure ratings:1.0Mpa,1.6Mp (Flange)
Working temperature: -10°-80°C.
Flow media: sewage water.
Please consult factory for PN25 and antishock device whenever there is waterhammer issue.
| Quick Selection Table | |||||
| Water Flow Rate CMH |
1360 | 4160 | 8500 | 19100 | 33400 |
| Main pipe size MM |
80-400 | 400-700 | 750-1000 | 1050-1500 | 1500-2000 |
| Size of SKAR MM |
50 | 80 | 100 | 150 | 200 |
Material:
Dimension:
